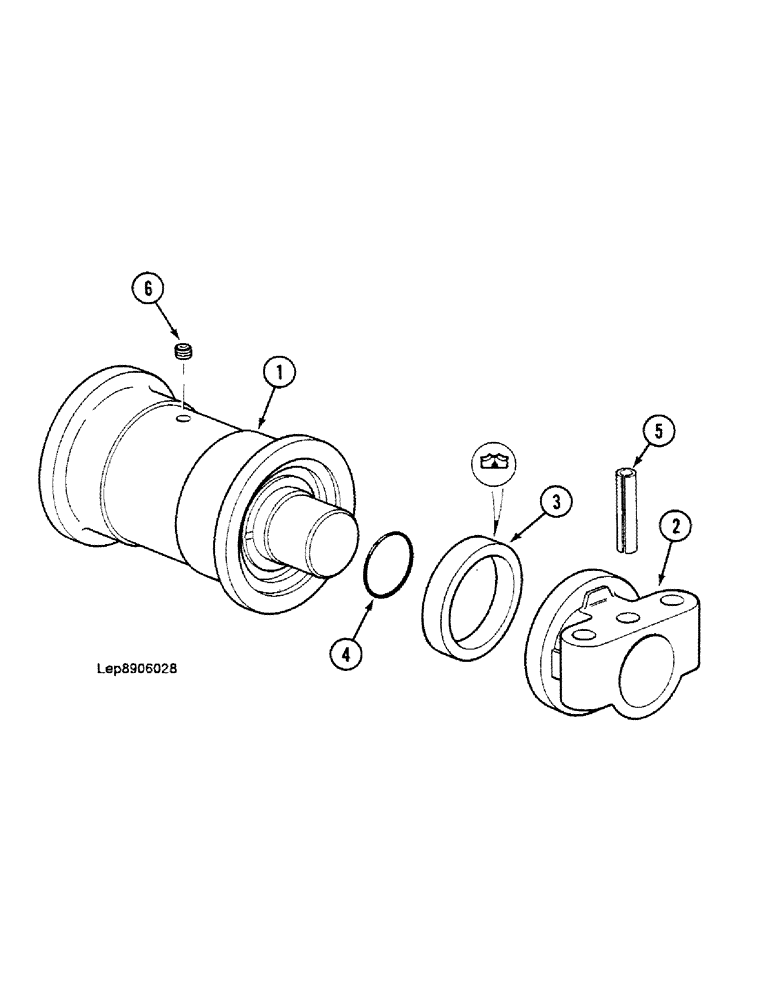

Запчасти Case 688C (5-20) - ROLLER LOWER D4R (04) - UNDERCARRIAGE

R1842315

ROLLER, TRACK

PULLEY Consist Of : 1-6, Order : F2042382

1шт.

1

PULLEY Order : F2042382

1шт.

2

SUPPORT Order : F2042382

2шт.

3

V8046017

SET OF GASKET

SET OF JOINTS seals

2шт.

4

F930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"3.53 x 44.04-80"

2шт.

5

F435740

SPLIT PIN/SAFETY PIN

2шт.

6

J2537437

PLUG

1шт.

F2042382

ROLLER, TRACK

PULLEY Consist Of : 1-6

1шт.

1

PULLEY Order : F2042382

1шт.

2

SUPPORT Order : F2042382

2шт.

3

J9346012

SET OF GASKET

SET OF JOINTS seals

2шт.

4

F930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"3.53 x 44.04-80"

2шт.

5

S435751

SPLIT PIN/SAFETY PIN

2шт.

6

J2537437

PLUG

1шт.
