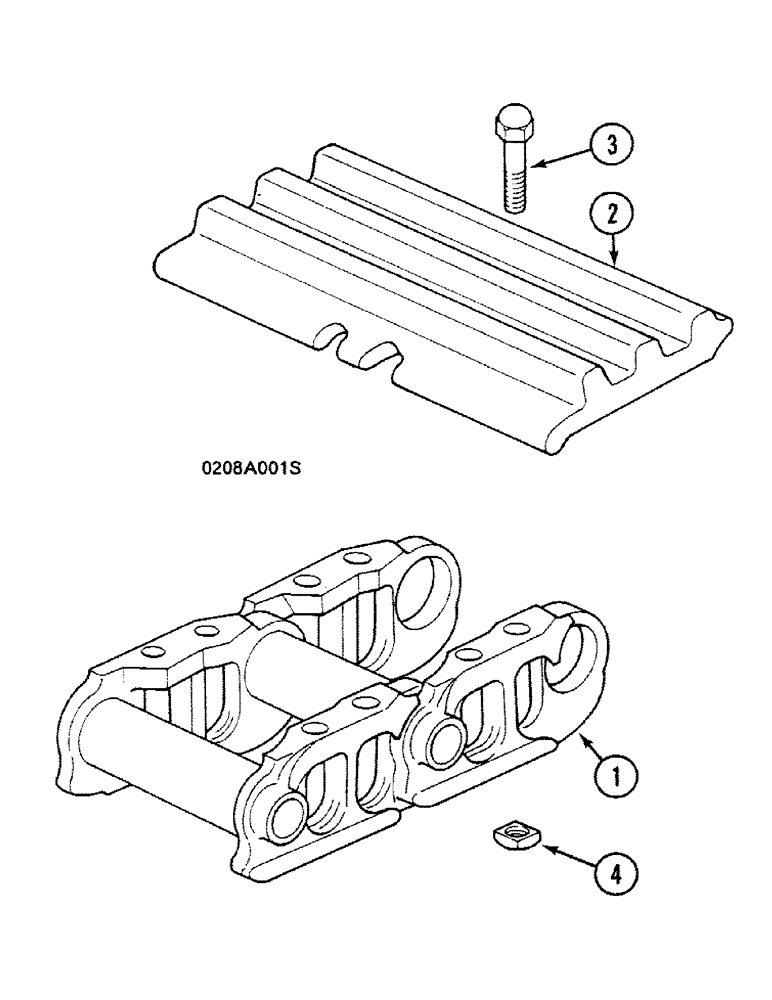

Запчасти Case 688C (5-10) - PAIR OF TRACKS, (-10613) (04) - UNDERCARRIAGE

See : S.A.T. INFORMATIONS No. 58

1шт.

1

CHAIN, See Figure : 5-12

2шт.

2

T1642309

TRACK SHOE

PAD 500mm

88шт.

2

U1642310

TRACK SHOE

PAD 600mm

88шт.

2

U1842318

TRACK SHOE

PAD 700mm

88шт.

2

V1842319

TRACK SHOE

PAD 850mm, Right

44шт.

2

W1842320

TRACK SHOE

PAD 850mm, Left

44шт.

3

P33041

SCREW

9/16 18UNF x 54

352шт.

4

R57375

SQUARE NUT

9/16 18UNF, (10614-)

352шт.

1

CHAIN, See Figure : 5-12

2шт.

2

W2042351

TRACK SHOE

PAD 500mm

88шт.

2

X2042352

TRACK SHOE

PAD 600mm

88шт.

2

Z2042353

TRACK SHOE

PAD 700mm

88шт.

2

D2042380

TRACK SHOE

PAD 850mm, Right

44шт.

2

E2042381

TRACK SHOE

PAD 850mm, Left

44шт.

3

F3533058

SCREW,9/16" - 18 x 1.89", Cl 11.9

9/16 18UNF x 48

352шт.

4

W2434593

NUT

9/16 18UNF

352шт.
