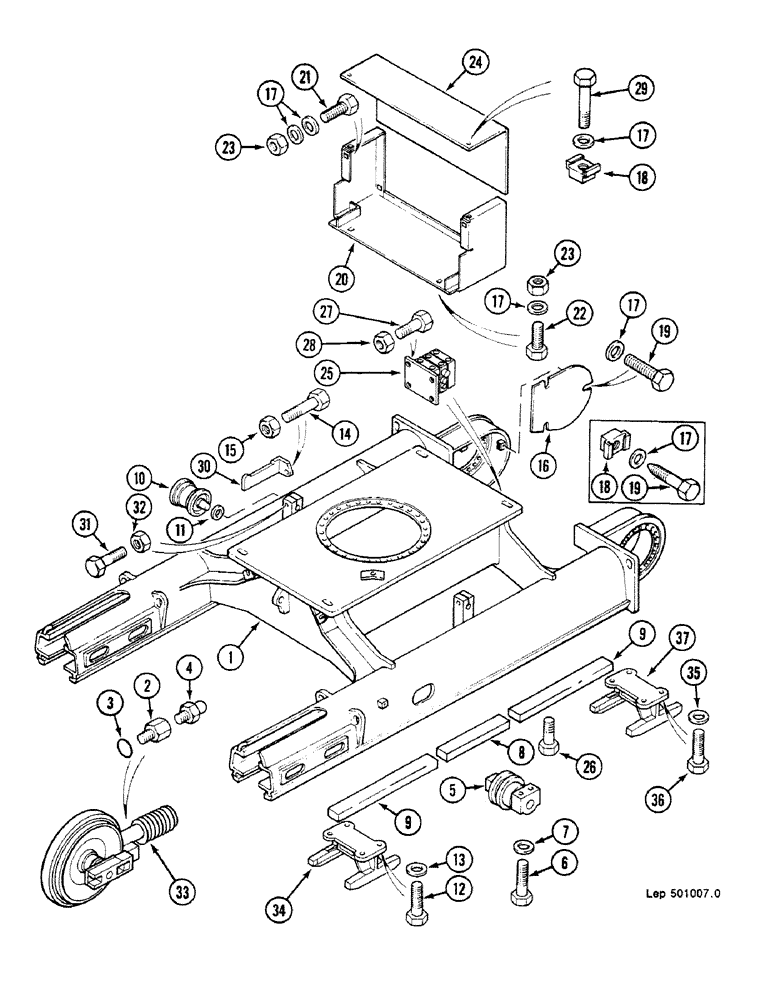

Запчасти Case 688C (5-02) - UNDERCARRIAGE (04) - UNDERCARRIAGE

1

J2154901

CHASSIS

1шт.

2

W2643387

VALVE POPPET

Consist Of : 3, 4

2шт.

3

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

5

PULLEY, See Figure : 5-20

14шт.

6

P1133890

SCREW

M16 x 110

56шт.

7

E4628731

WASHER

"16.5 x 6 x 30"

56шт.

8

D4420350

PLATE,SMALL SQUARE

4шт.

9

C4420349

PLATE,SMALL SQUARE

8шт.

10

J2242301

ROLLER, TRACK

PULLEY Consist Of : 11, Replace : R1538577

2шт.

11

D8846056

SET OF GASKET

SET OF JOINTS seals

1шт.

12

A233841

SCREW

M16 x 70

8шт.

13

E4628731

WASHER

"16.5 x 6 x 30"

8шт.

14

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

2шт.

15

Q134564

SAFETY NUT

M20

2шт.

16

P2722569

COWL

COVER

2шт.

17

W3528795

WASHER

"10.25 x 7 x 25"

16шт.

18

X2434525

NUT

M10, (-XXXXX)::

10шт.

18

X2434525

NUT

M10, (XXXXX-)::

4шт.

19

D732622

BOLT,Hex, M10 x 40mm

M10 x 40, (-XXXXX)::

6шт.

19

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

(XXXXX-)::

6шт.

20

V926482

PROTECTOR

1шт.

21

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

22

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

2шт.

23

G34598

SAFETY NUT

M10

4шт.

24

P5125678

HOOD

PLATE

1шт.

25

BLOCK, See Figure : 7-08

1шт.

26

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

28

E34596

SAFETY NUT

M12

4шт.

29

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

Replace: M3333033

4шт.

30

FOOTBOARD, See Figure : 5-06

2шт.

31

V833815

SCREW

M24 x 120

2шт.

32

S134566

SAFETY NUT

M24

2шт.

33

PULLEY fleeting, See Figure : 5-14 - 5-18

1шт.

34

P7428231

GUIDE

Optional

2шт.

35

E4628731

WASHER

"16.5 x 6 x 30"

8шт.

36

A233841

SCREW

M16 x 70 10.9

8шт.

37

P7428231

GUIDE

2шт.
