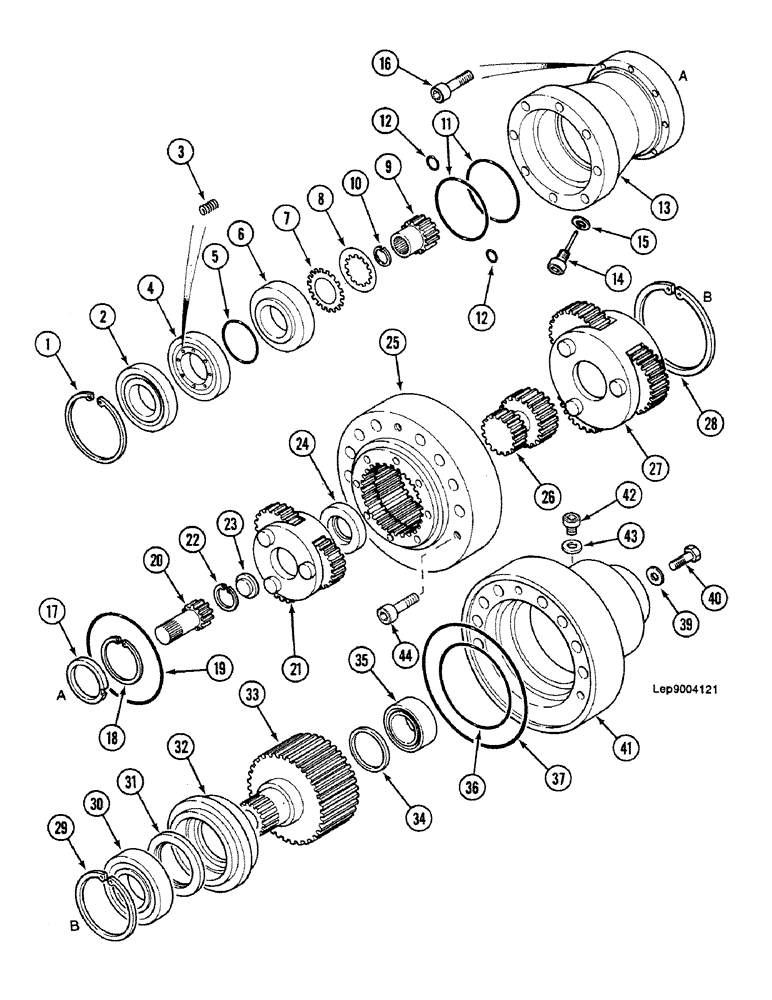

Запчасти Case 688C (6-16) - SWING REDUCTION GEAR, (10764-) (03) - TRANSMISSION

W2648585

REDUCER

Consist Of : 1-44

1шт.

1

301652

SNAP RING,M110 x 4mm, Internal

1шт.

2

V1929075

STOP

1шт.

3

R38287

SPRING

10шт.

4

C2728952

PISTON

1шт.

5

G30412

O-RING

"3.53 x 75.79-80"

1шт.

6

U5428731

SPACER

1шт.

7

E8046025

DISC

7шт.

8

T1945380

DISC

6шт.

9

E3739390

FUNNEL

FRAME

1шт.

10

B936331

RING, SNAP

RING SNAP

1шт.

11

X230412

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

"3.53 x 110.72-80"

2шт.

12

F230419

O-RING

"2.62 x 12.37-80"

2шт.

13

Q5140307

HOUSING

1шт.

14

P2537488

PLUG

1шт.

15

S545208

WASHER, SEALING

SEAL WASHER "18.2 x 23.9 x 1.5"

1шт.

16

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

17

D1846351

SPACER

1шт.

18

B36249

RING, SNAP

RING SNAP

1шт.

19

U1830404

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

"2.62 x 145.72-80"

1шт.

20

X4339339

GEAR

1шт.

T4339381

PINION CARRIER

Consist Of : 21, 22, 23

1шт.

21

CARRIER pinion Order : T4339381

1шт.

22

Q936344

RING

1шт.

23

W6027837

STOP

1шт.

24

N2728893

SPACER

1шт.

25

U4839356

CROWN WHEEL

RING slewing

1шт.

26

N4839327

GEAR

1шт.

27

T4839355

PINION CARRIER

1шт.

V2948504

HOUSING

Consist Of : 28-43

1шт.

28

E536249

RING, SNAP

RING SNAP

1шт.

29

301652

SNAP RING,M110 x 4mm, Internal

1шт.

30

L1139844

BEARING

1шт.

31

C651270

SEAL

1шт.

32

D5240369

COVER

PLATE

1шт.

33

F3739391

PINION

1шт.

34

H8046028

SEAL

1шт.

35

M1139845

BEARING

1шт.

36

L30485

O-RING

"3.53 x 142.47-80"

1шт.

37

B2130491

O-RING,0.103" Thk x 8" ID, -171, Cl 5, 75 Duro

"2.62 x 202.84-80"

1шт.

39

E1245224

LINING

1шт.

40

L433813

SCREW

M8 x 10

1шт.

41

HOUSING Order : V2948504

1шт.

42

E1337431

PLUG

2шт.

43

W146093

WASHER, SEALING

SEAL WASHER "14.2 x 17.9 x 1.5"

2шт.

44

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

3шт.
