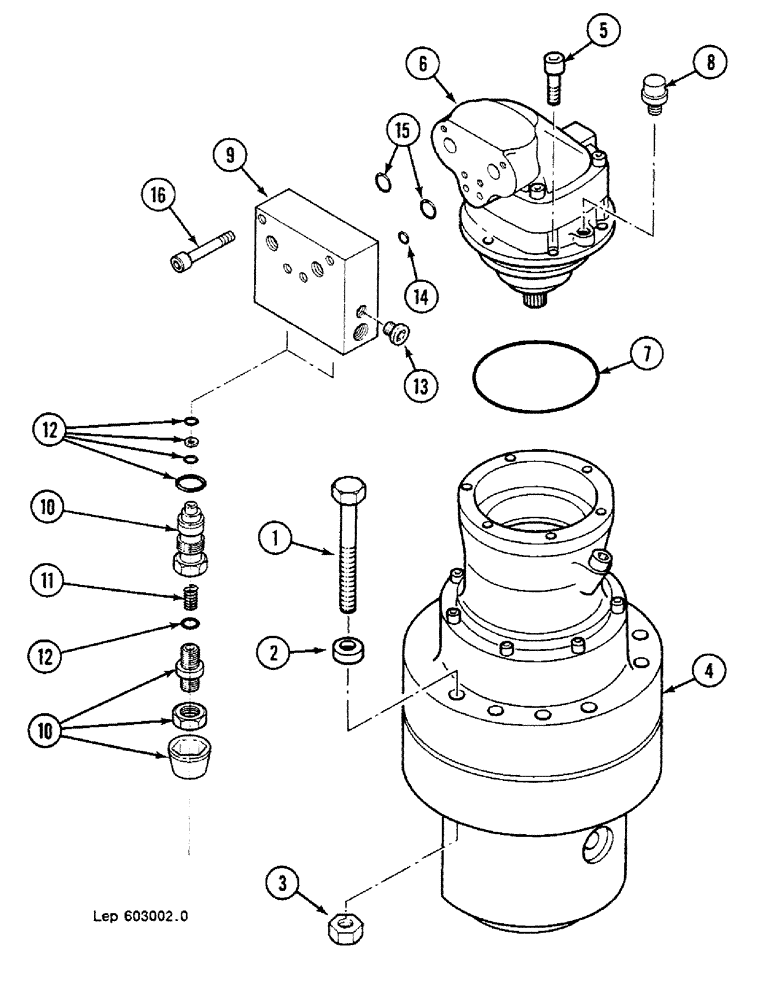

Запчасти Case 688C (6-10) - SWING MOTOR-DRIVE REDUCTION GEAR, (11129, 11131-) (03) - TRANSMISSION

1

S1633867

SCREW,Hex, M20 x 180mm, Cl 10.9

M20 x 220 10.9

8шт.

2

K4328747

WASHER

21 x 14 x 35

8шт.

3

S134106

NUT

M20

8шт.

4

REDUCER, See Figure :, Serial Range: 6-12-6-16

1шт.

5

K532988

SCREW,Hex Soc Hd, M10 x 25, 10.9

6шт.

6

MOTOR hyd., See Figure : 8C-50

1шт.

7

Z230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

"5.7 x 139.3-70"

1шт.

8

K4043386

VALVE POPPET,M14 x 1.5

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

U4943385

SHIN

BRACKET Consist Of : 9-15

1шт.

9

BRACKET Order : U4943385

1шт.

P1943674

VALVE,M28 x 1.5

Consists Of : 10, 11, 12

1шт.

10

LIMITER Order : P1943674

1шт.

11

L1538135

SPRING

1шт.

12

D3749601

KIT

seals

1шт.

13

U2537447

PLUG

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

14

T2930470

SEAL,8.74mm ID x 12.3mm OD x 1.78mm Thk

"1.78 x 8.74-80"

1шт.

15

K30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

"2.62 x 20.29-80" Order : 238-6117

2шт.

16

R32905

SCREW

M8 x 55

4шт.
