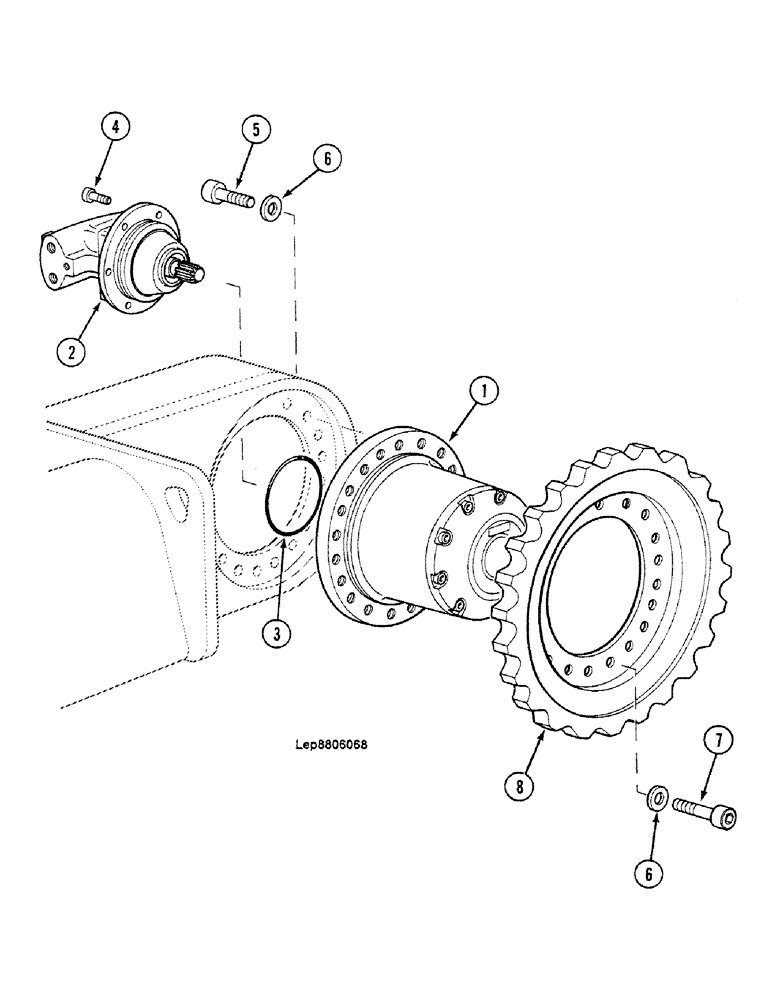

Запчасти Case 688C (6-02) - TRAVEL COMPONENTS (03) - TRANSMISSION

1

REDUCER, See Figure : 6-04, 6-06

2шт.

2

MOTOR, See Figure : 7-20

2шт.

3

Z230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

"5.7 x 139.3-70"

2шт.

4

K532988

SCREW,Hex Soc Hd, M10 x 25, 10.9

12шт.

5

Z732986

SCREW

M20 x 75

20шт.

6

K4328747

WASHER

21 x 14 x 35

44шт.

7

C632962

SCREW,M20 x 60mm, Cl 10.9

M20 x 60

24шт.

8

U3739381

WHEEL

2шт.
