Запчасти Case 688C (3-14) - FUEL SYSTEM CIRCUIT (02) - FUEL SYSTEM

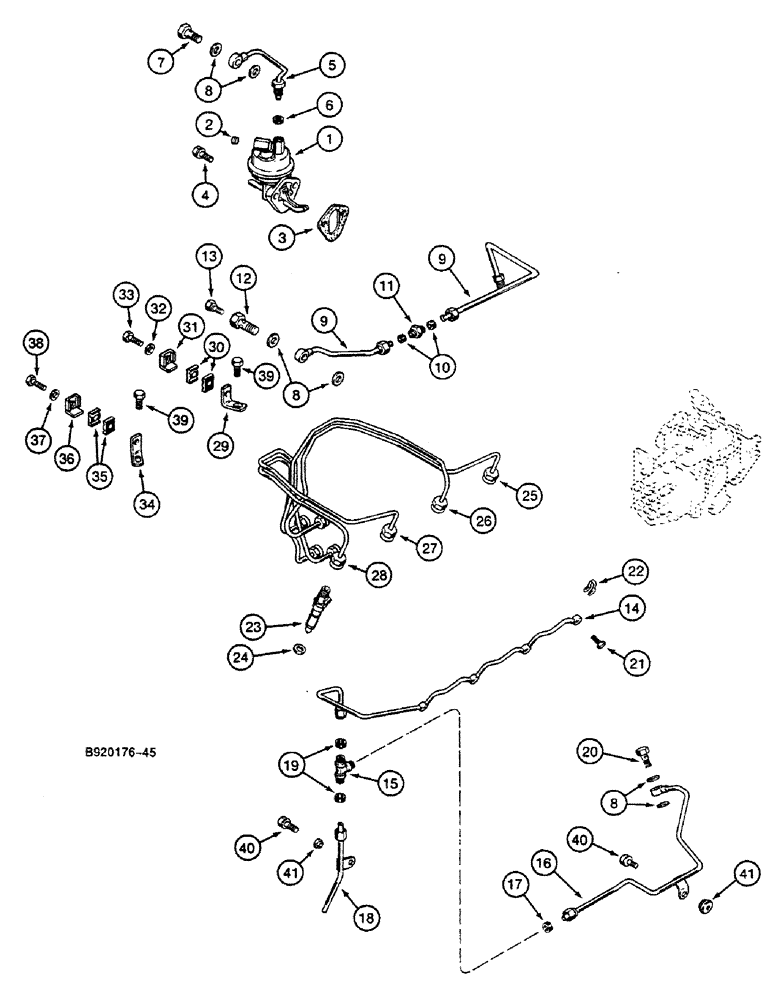

Схема запчастей Case 688C - (3-14) - FUEL SYSTEM CIRCUIT (02) - FUEL SYSTEM
2
40
39
17
25
36
1
9
20
29
38
41
27
10
32
9
13
8
39
14
33
19
28
15
37
4
16
24
31
5
35
21
22
18
3
8
23
11
6
12
7
41
34
8
40
30
26

Артикул

Название

Примечание

Количество

1

J904374

PUMP

1шт.

2

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

1шт.

3

J914304

GASKET

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Consist Of : 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 OD

1шт.

7

J903035

BANJO BOLT

female M12 x 24

1шт.

8

J918191

PACKING RING

Replace : J903037

6шт.

9

J918640

FUEL TUBE

Consist Of : 10, Replace : J912783

1шт.

10

222-103

SLEEVE,5/16" Tube

2шт.

11

222-4

FITTING,9/16"-24, Flex Tube

1шт.

J905860

BANJO BOLT

female Consist Of : 12, 13

1шт.

12

SCREW female Order : J905860

1шт.

13

SCREW Order : J905860

1шт.

14

J909695

FUEL TUBE

1шт.

15

222-121

TEE,3/16", Flex Tubing

Piece

1шт.

16

J905699

FUEL TUBE,4.76 mm OD

1шт.

17

222-101

SLEEVE,3/16" Tube

3/16 OD

1шт.

18

J905692

FUEL TUBE

Consist Of : 19

1шт.

19

222-101

SLEEVE,3/16" Tube

/16 OD

2шт.

20

J905465

BANJO BOLT

1шт.

21

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Female

4шт.

22

J903380

SEAL

4шт.

23

INJECTOR, See Figure : 3-22

4шт.

24

J900808

SEAL

4шт.

25

J903480

FUEL TUBE,21 mm ID x 64 mm OD

Cylinder : Nr 1

1шт.

26

J903481

FUEL TUBE,21 mm ID x 64 mm OD

Cylinder : Nr 2

1шт.

27

J903482

FUEL TUBE,21 mm ID x 64 mm OD

Cylinder : Nr 3

1шт.

28

J903483

FUEL TUBE,21 mm ID x 64 mm OD

Cylinder : Nr 4

1шт.

A77484

SUPPORT ASSY.

Consist Of : 29-33

1шт.

29

J919294

SUPPORT

1шт.

30

J917746

CLAMP

BRACKET

2шт.

31

CURJ904711

CLAMP

PIECE angle

1шт.

32

J903723

WASHER

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

A77485

SUPPORT ASSY.

Consist Of : 34-38

1шт.

34

J919292

SUPPORT

1шт.

35

J917746

CLAMP

BRACKET

2шт.

36

CURJ904711

CLAMP

PIECE angle

1шт.

37

J903723

WASHER

1шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Replaces J904341

2шт.

40

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

41

J900267

SEAL

2шт.

Выбрано товаров: 44
