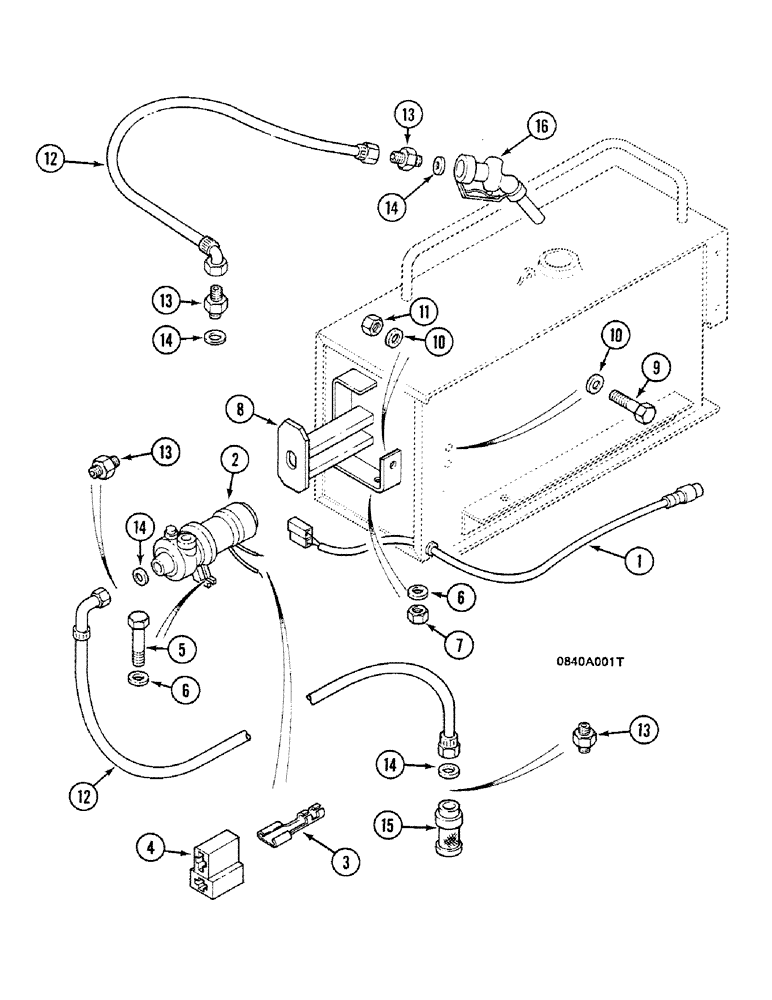

Запчасти Case 688C (3-12) - FUEL FILLING PUMP (02) - FUEL SYSTEM

1

E352272

HARNESS

wire

1шт.

E1340720

CONNECTOR,ELECTRIC

PLUG

1шт.

2

L2843569

PUMP

1шт.

3

E640945

CLIP,ELECTRICAL

2шт.

4

M440714

ELEC CONNECTOR

1шт.

5

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

2шт.

6

V3528794

WASHER

"8.25 x 6 x 20"

4шт.

7

A134596

SAFETY NUT

M8

2шт.

8

N6328255

SUPPORT

1шт.

9

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

10

W3528795

WASHER

"M10.25 x 7 x 25"

8шт.

11

G34598

SAFETY NUT

M10

4шт.

12

C4431918

HOSE

2000mm

2шт.

13

N4037547

UNION

4шт.

14

W1245217

WASHER, SEALING

SEAL WASHER "33.3 x 38.9 x 2"

4шт.

15

U7646253

VALVE POPPET

1шт.

16

T7646252

HANDLE

1шт.
