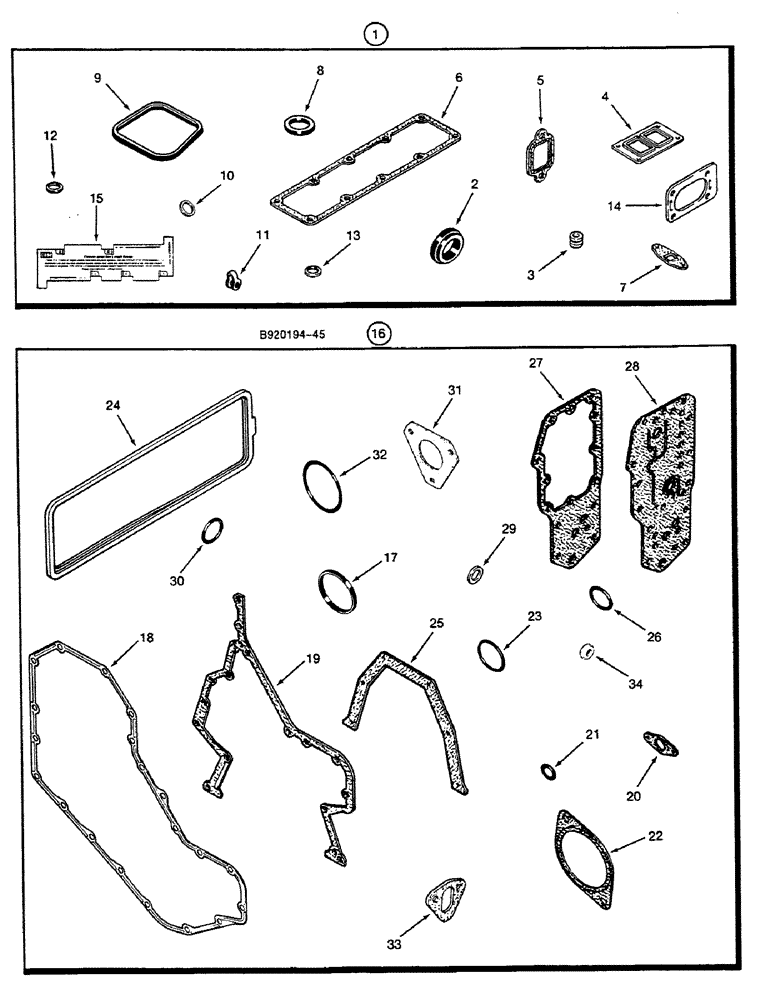

Запчасти Case 688C (2-62) - GASKET KITS (01) - ENGINE

1

A77672

GASKET KIT

Consist Of : 2-11, Injector : 9mm, (-21092869)::

1шт.

1

A77792

GASKET KIT

Consist Of : 2-9, 11-15, Injector : 7mm, (21092870-)::

1шт.

2

J923331

GASKET

Replace : J903301

1шт.

3

J901097

SEAL

8шт.

4

J901356

GASKET,0.5mm Thk

1шт.

5

J905443

MANIFOLD GASKET

4шт.

6

J914028

GASKET

1шт.

7

J914388

GASKET

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

1шт.

9

J902666

GASKET

4шт.

10

J900808

SEAL

4шт.

11

J903380

SEAL

4шт.

12

J920174

PACKING RING

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

14

J914856

GASKET,1.02mm Thk

1шт.

15

J823921

GAUGE

1шт.

16

A77671

GASKET KIT

Consist Of : 17-34

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

18

J914385

GASKET,1.02mm Thk

1шт.

19

J916131

GASKET

1шт.

20

J905595

GASKET

1шт.

21

J913994

O-RING

1шт.

22

J919601

GASKET

Replace : J913192

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replace 22290R1)

1шт.

24

J904056

GASKET

1шт.

25

J914386

GASKET

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

27

J918256

GASKET

1шт.

28

J918257

GASKET

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

31

J914389

GASKET

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

33

J914304

GASKET

1шт.

34

J900267

SEAL

4шт.
