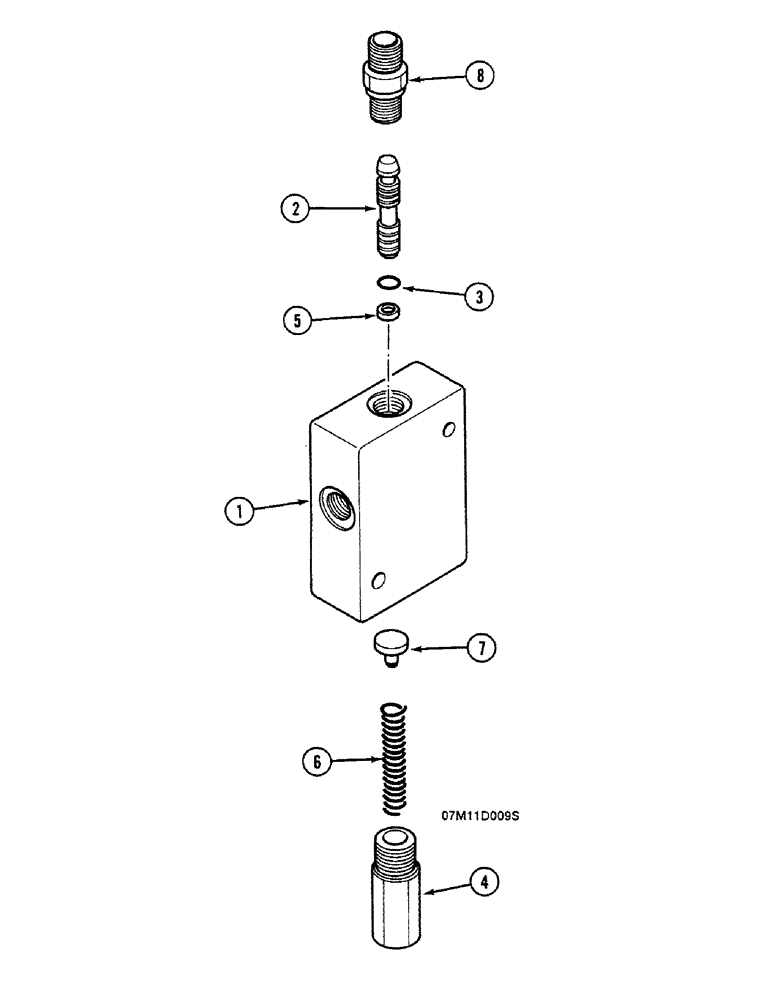

Запчасти Case 688C (7-18) - SPEED CONTROL LIMITER VALVE (07.1) - UNDERCARRIAGE HYDRAULICS

1

L4743323

BLOCK ASSY.

LIMITER Consist Of : 2-8

1шт.

2

H6427817

SPOOL

1шт.

3

W230411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"1.78 x 6.07-80"

1шт.

4

A1030032

CAP

1шт.

5

Z1245265

BACK-UP RING

JOINT

1шт.

6

C1538196

COMPRESSION SPRING

1шт.

7

J6027871

TAPPET

PUSHER

1шт.

8

E3237530

UNION

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.
