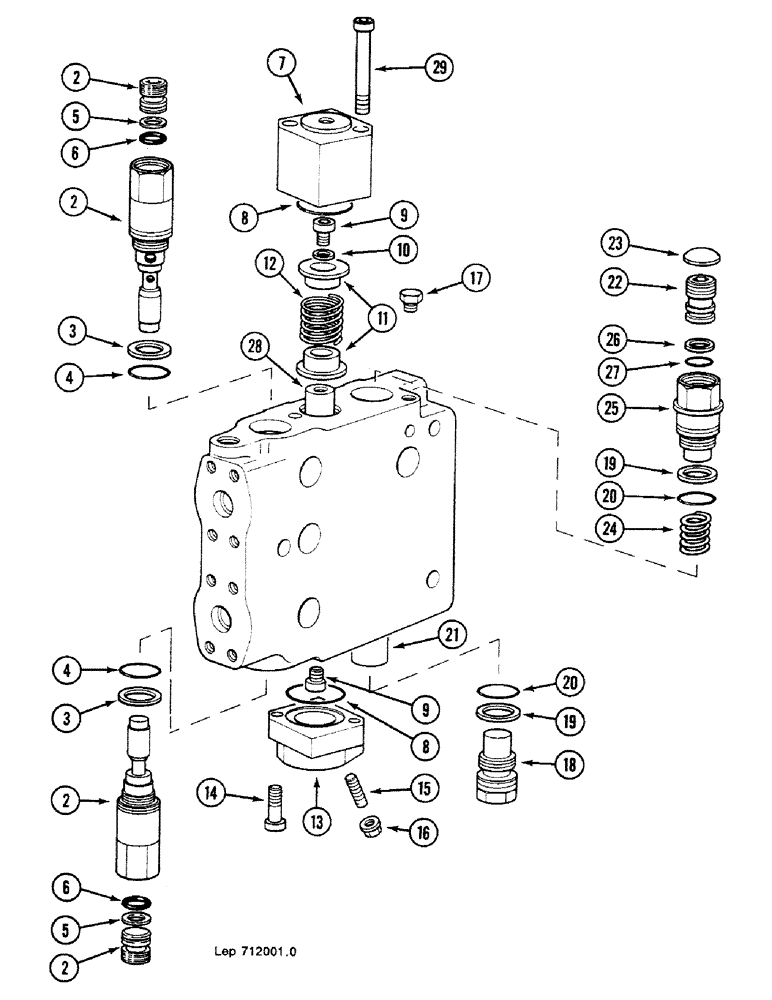

Запчасти Case 688C (7-16) - CONTROL VALVE FOR TRAVEL (07.1) - UNDERCARRIAGE HYDRAULICS

M3343682

DISTRIBUTOR

BLOCK selector Control Valve For Travel Right, Consist Of : 1-29

1шт.

1

BLOCK selector Order : M3343682

1шт.

Q3143677

SHOCK ABSORBER

Consist Of : 2-6

2шт.

2

ABSORBER shock Order : Q3143677

1шт.

3

N1245232

RING

BUSHING

1шт.

4

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

1шт.

5

M1245231

BACK-UP RING

RING backup

1шт.

6

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

7

T5140379

CAP

1шт.

8

V2930449

O-RING

2шт.

9

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

10

V1945382

WASHER

1шт.

11

S7646228

CUPEL

2шт.

12

A38295

SPRING

1шт.

13

J5140370

CAP

1шт.

14

Q732909

BOLT,Hex, M8 x 25, 8.8

M8 x 25, 10.9

2шт.

15

W3333042

STUD

M8 x 25 x 25

1шт.

16

Q2434541

NUT

1шт.

17

C3037405

PLUG

1шт.

18

D3037406

PLUG

1шт.

19

N1245232

RING

BUSHING

2шт.

20

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

2шт.

21

VALVE spool/drawer Order : M3343682

1шт.

22

G3143669

SPARE PART SET

1шт.

23

E2340461

BLANK-OFF PLUG

1шт.

24

H1538155

SPRING

1шт.

25

D2340460

CAP

1шт.

26

M1245231

BACK-UP RING

1шт.

27

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

28

VALVE spool Order : M3343682

1шт.

29

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.
