(7-10) - DRIVE CONTROL VALVE

Запчасти Case 688C (7-10) - DRIVE CONTROL VALVE (07.1) - UNDERCARRIAGE HYDRAULICS

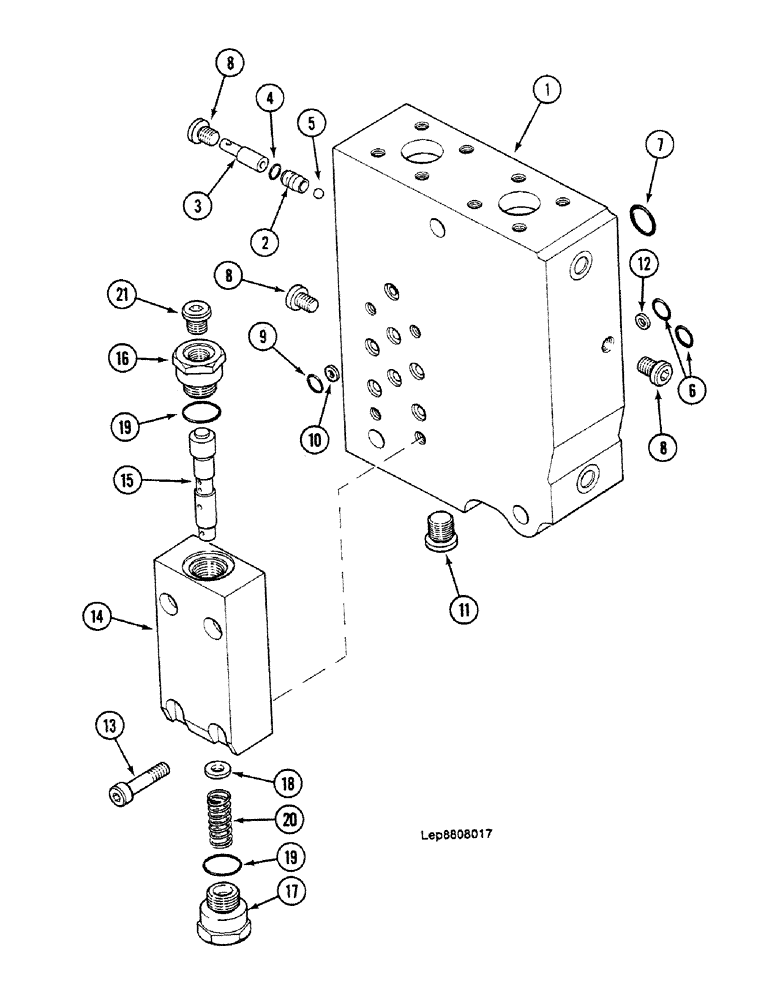

Схема запчастей Case 688C - (7-10) - DRIVE CONTROL VALVE (07.1) - UNDERCARRIAGE HYDRAULICS
3
19
18
14
7
4
16
20
8
10
11
5
19
1
15
8
17
6
2
9
13
21
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F3343630

LARGE PLATE

PLATE, LARGE VALVE ASSY. Consist Of : 2-21

1шт.

2

P729780

SEAT

1шт.

3

N1029446

STOP

SPOOL

1шт.

4

T2930401

O-RING

1шт.

5

X31002

BALL

1шт.

6

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"1.8 x 12.5"

3шт.

7

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"2.65 x 28"

4шт.

8

C3037405

PLUG

3шт.

9

NLS

NO LONGER SERVICED

"1.9 x 8.9"

7шт.

10

G3743256

JET

ORIFICE

1шт.

11

U2537447

PLUG

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

12

D3628828

BACK-UP RING

RING backup

1шт.

13

R132909

SCREW

M8 x 35

4шт.

14

F4343325

VALVE

brake Consist Of : 15-21

1шт.

15

SPOOL Order : F4343325

1шт.

16

A3337415

PLUG

1шт.

17

B3337416

PLUG

1шт.

18

U2745459

WASHER

1шт.

19

W2930450

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

2шт.

20

Z138160

COMPRESSION SPRING

1шт.

21

U2537447

PLUG

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.
