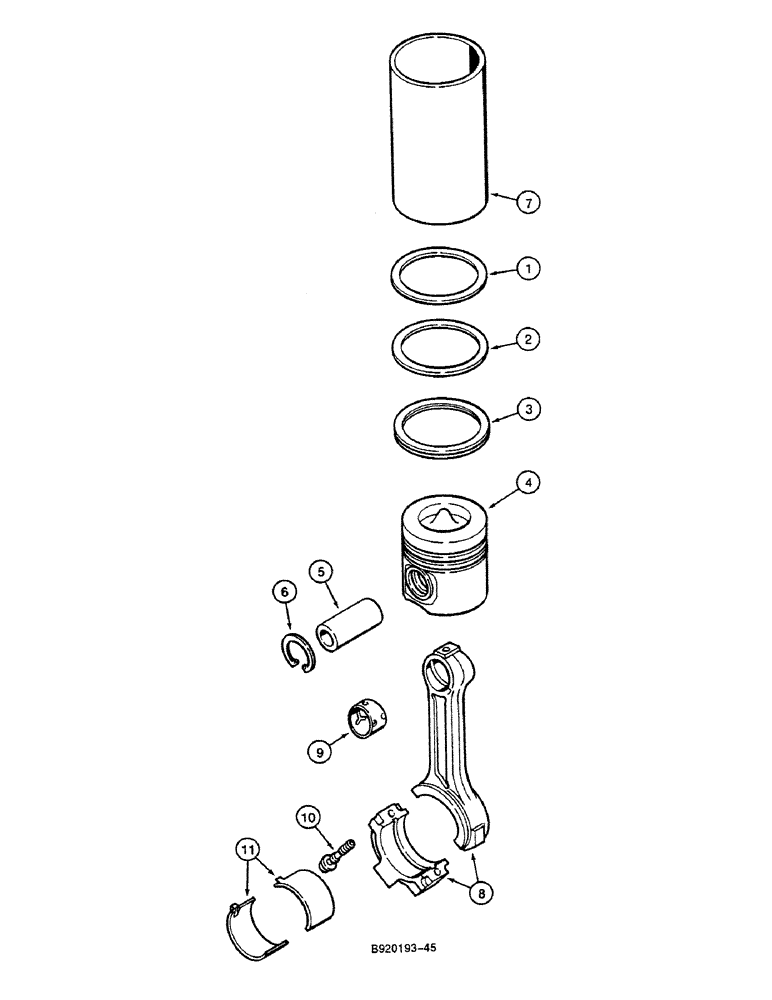

Запчасти Case 688C (2-58) - PISTONS (01) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

Consist Of : 1-6, Replace : A77419

4шт.

A77727

PISTON RING SET

Consist Of : 1, 2, 3, Replace : A77500

1шт.

1

SEGMENT Order : A77727

1шт.

2

SEGMENT Order : A77727

1шт.

3

SEGMENT Order : A77727

1шт.

4

PISTON Order : A77730

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

OVERSIZE : + 0.50 mm

2шт.

A77731

PISTON & RINGS KIT

Consist Of : 1, 6, Replace : A77638

4шт.

A77728

PISTON RING SET

Consist Of : 1, 2, 3, Thickness : 0.50mm, Replace : A77501

1шт.

1

SEGMENT Order : A77728

1шт.

2

SEGMENT Order : A77728

1шт.

3

SEGMENT Order : A77728

1шт.

4

PISTON Order : A77731

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

OVERSIZE : + 1.00 mm

2шт.

A77732

PISTON

Consist Of : 1, 6, Replace : A77637

4шт.

A77729

PISTON RING SET

Consist Of : 1, 2, 3, Thickness : 1.00mm, Replace : A77502

1шт.

1

SEGMENT Order : A77729

1шт.

2

SEGMENT Order : A77729

1шт.

3

SEGMENT Order : A77729

1шт.

4

PISTON Order : A77732

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

2шт.

7

J904166

SLEEVE

Service Repair Only : When Liner Is Installed Use Only Piston A77730 Assembly.

1шт.

J901569

ROD, CONNECTING

Consist Of : 8, 9, 10

4шт.

84145405R

REMAN-CONNECTING ROD

688C S/N 10501 & AFTER, Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

ROD connecting Order : J901569

4шт.

9

J901085

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

11

A77465

BEARING SET

SET

4шт.

11

A77466

BEARING SET

SET Thickness : 0.25mm

4шт.

11

A77467

BEARING LINER

SET Thickness : 0.50mm

4шт.

11

A77468

BEARING SET

SET Thickness : 0.75mm

4шт.

11

A77469

BEARING SET

SET Thickness : 1.00 mm

4шт.
