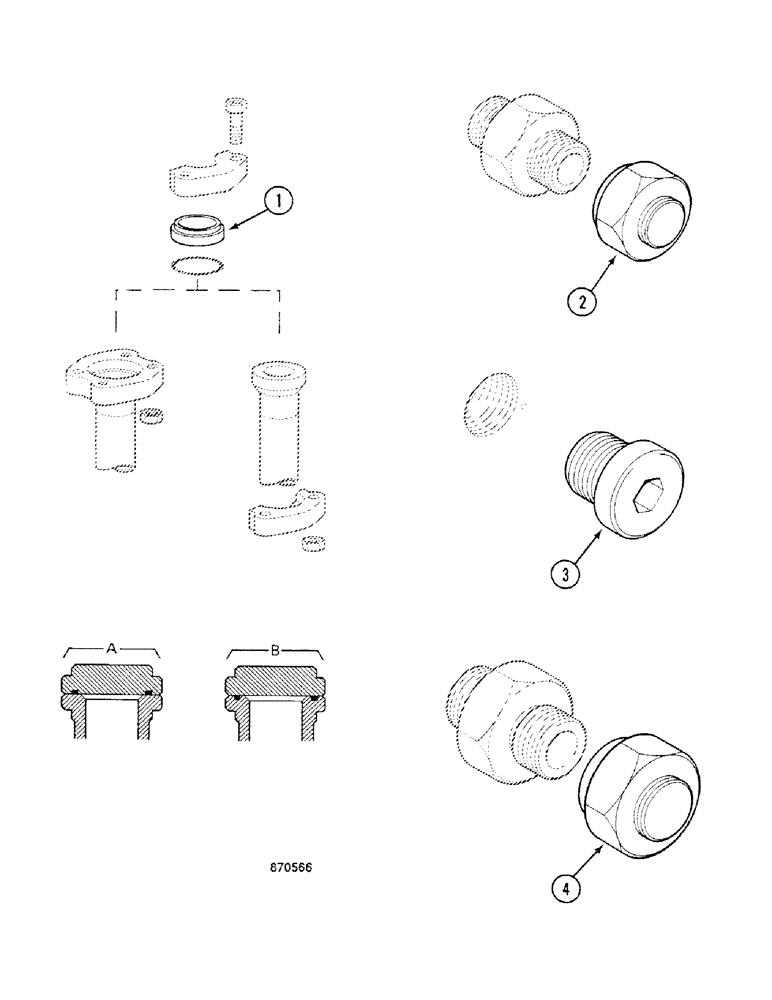

Запчасти Case 688C (9H-18) - PLUG AND BLANK-OFF PLUG (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

U5327830

BLANK-OFF PLUG

PN400DN13, Version : A

1шт.

1

V5327831

BLANK-OFF PLUG

PN400DN13, Version : B

1шт.

1

W5327832

BLANK-OFF PLUG

PN400DN19, Version : A

1шт.

1

X5327833

BLANK-OFF PLUG

PN400DN19, Version : B

1шт.

1

Z5327834

BLANK-OFF PLUG

PN400DN25, Version : A

1шт.

1

A5327835

BLANK-OFF PLUG

PN400DN25, Version : B

1шт.

1

B5327836

BLANK-OFF PLUG

PN400DN32, Version : A

1шт.

1

C5327837

BLANK-OFF PLUG

PN400DN32, Version : B

1шт.

1

D5327838

BLANK-OFF PLUG

PN250DN13, Version : A

1шт.

1

E5327839

BLANK-OFF PLUG

PN250DN13, Version : B

1шт.

1

F5327840

BLANK-OFF PLUG

PN250DN19, Version : A

1шт.

1

G5327841

BLANK-OFF PLUG

PN250DN19, Version : B

1шт.

1

H5327842

BLANK-OFF PLUG

PN250DN25, Version : A

1шт.

1

J5327843

BLANK-OFF PLUG

PN250DN25, Version : B

1шт.

1

K5327844

BLANK-OFF PLUG

PN250DN32, Version : A

1шт.

1

L5327845

BLANK-OFF PLUG

PN250DN32, Version : B

1шт.

1

M5327846

BLANK-OFF PLUG

PN250DN38, Version : A

1шт.

1

N5327847

BLANK-OFF PLUG

PN250DN38, Version : B

1шт.

2

A2537406

BLANK-OFF PLUG

"M16 x 1.5mm"

1шт.

2

B2537407

BLANK-OFF PLUG

"M18 x 1.5mm"

1шт.

2

C2537408

BLANK-OFF PLUG

"M20 x 1.5mm"

1шт.

2

D2537409

BLANK-OFF PLUG

"M24 x 1.5mm"

1шт.

3

V2537448

PLUG

"M10 x 1.0mm"

1шт.

S2230441

GASKET

"8.4 x 11.9 x 1"

1шт.

3

D2537432

PLUG

"M12 x 1.5mm"

1шт.

B2230426

GASKET

"9.8 x 14.4 x 1.5"

1шт.

3

U2537447

PLUG

"M14 x 1.5mm"

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

3

F2537411

PLUG

"M16 x 1.5mm"

1шт.

R2230417

GASKET

"13.8 x 18.9 x 1.5"

1шт.

3

G2537412

PLUG

"M18 x 1.5 mm"

1шт.

S2230418

GASKET

"15.7 x 20.9 x 1.5"

1шт.

3

H2537413

PLUG

"M22 x 1.5mm"

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

3

A2537429

PLUG

"M27 x 2.0mm"

1шт.

V5746063

GASKET

"23.9 x 29.2 x 1.5"

1шт.

3

B2537430

PLUG

"M33 x 2.0mm"

1шт.

T945294

GASKET

"29.7 x 35.7 x 2"

1шт.

3

C2537431

PLUG

"M42 x 2.0mm"

1шт.

E2230429

GASKET

"38.8 x 45.8 x 2"

1шт.

4

A237406

BLANK-OFF PLUG

DN10

1шт.

4

F737408

BLANK-OFF PLUG

DN13

1шт.

4

W50459

BLANK-OFF PLUG

DN17

1шт.

4

V137789

BLANK-OFF PLUG

DN21

1шт.

4

V50458

RING

DN27

1шт.
