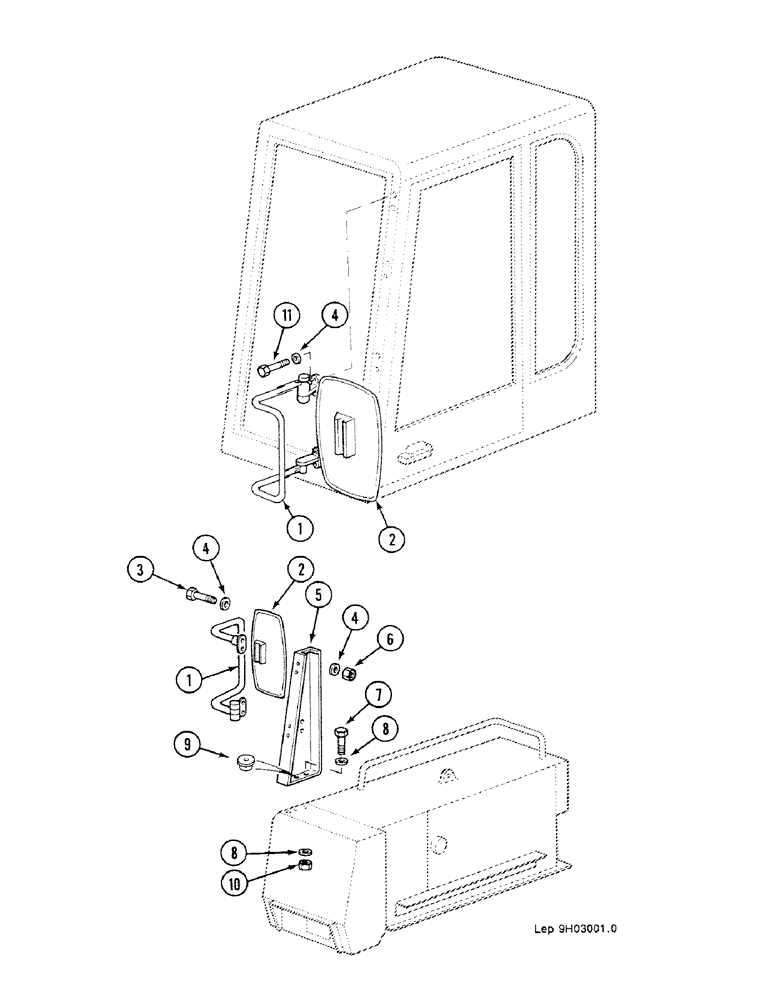

Запчасти Case 688C (9H-08) - BACK VIEW MIRRORS, (-11070, 11072-11075) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

C1343225

SUPPORT

2шт.

2

D843206

MIRROR

2шт.

3

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

4

B3528799

WASHER

"6.25 x 4 x 15"

8шт.

5

W7428261

SUPPORT

FOOT

1шт.

6

F234513

SAFETY NUT

M6

4шт.

7

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

8

W3528795

WASHER

"10.25 x 7 x 25"

4шт.

9

N3337427

PLASTIC PLUG

1шт.

10

G34598

SAFETY NUT

M10

2шт.

11

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.
