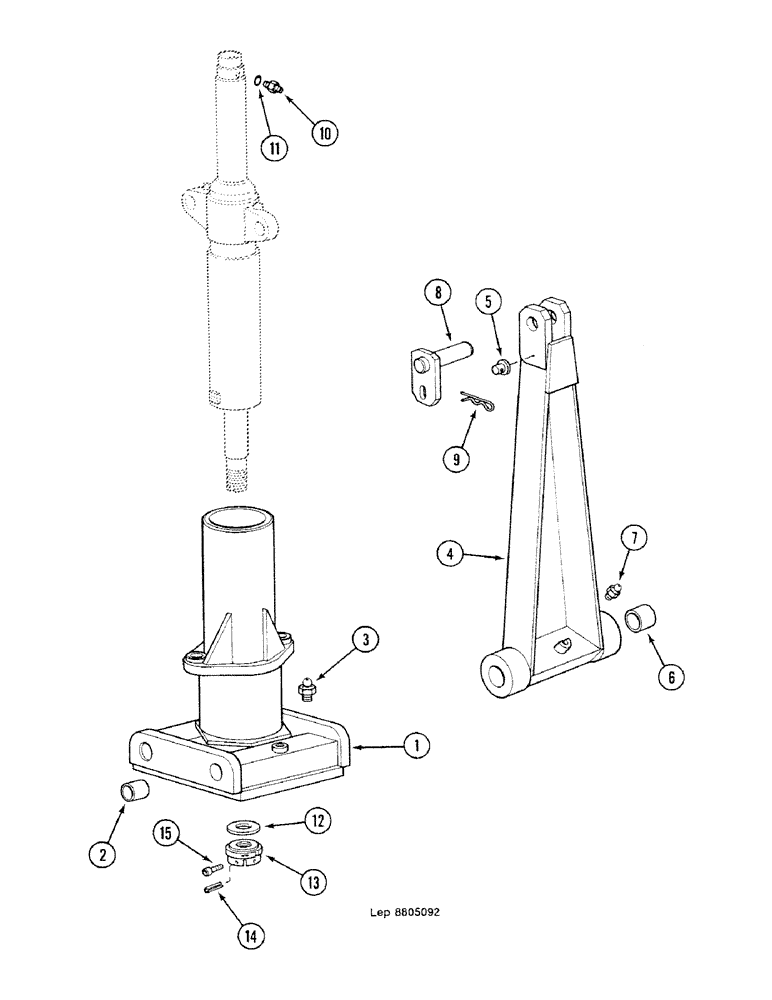

Запчасти Case 688C (9G-74) - TRENCHING CLAMSHELLS (210L - 0.65M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

B1044638

LINKAGE YOKE

Consist Of : 2

1шт.

2

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

4

Z50231

ARM

Consist Of : 5, 6

2шт.

5

C27855

SHAFT LOCK

2шт.

6

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

7

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

8

G30918

PIN

30

2шт.

9

W36015

SPLIT PIN/SAFETY PIN

2шт.

10

L2337592

UNION

Consist Of : 11

2шт.

11

S945293

WASHER, SEALING

SEAL WASHER "18.5 x 23.9 x 1.5"

2шт.

12

G45523

WASHER

60 x 109 x 13

1шт.

13

N52406

NUT

1шт.

14

M35799

SPLIT PIN/SAFETY PIN

1шт.

15

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

2шт.
