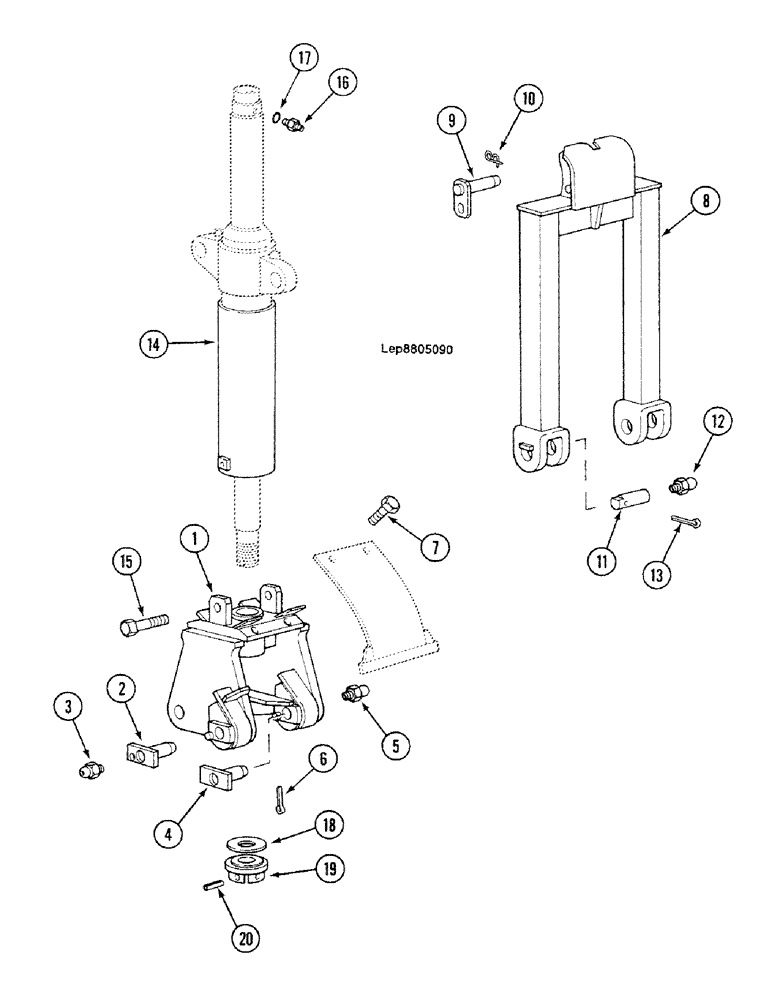

Запчасти Case 688C (9G-68) - BORING CLAMSHELLS YOKE ARM (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

S50202

LINKAGE YOKE

1шт.

2

J3430987

PIN

40,Pin

2шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

4

B50302

LARGE PIN

PIN, LARGE 40, Consist Of : 5

2шт.

5

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

6

W35532

SPLIT PIN/SAFETY PIN

4шт.

7

L32716

SCREW

M20 x 50

4шт.

8

V50205

ARM

2шт.

9

G30918

PIN

30

2шт.

10

W36015

SPLIT PIN/SAFETY PIN

2шт.

11

K27954

PIN

30, Consist Of : 12

4шт.

12

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

13

H35542

SPLIT PIN

4шт.

14

C47773

PROTECTOR

1шт.

15

P33869

BOLT,Hex, M14 x 30

2шт.

16

L2337592

UNION

Consist Of : 17

2шт.

17

S945293

WASHER, SEALING

SEAL WASHER "18.5 x 23.9 x 1.5"

2шт.

18

H45524

WASHER

60 x 101 x 13

1шт.

19

P34513

SLOTTED NUT

M60

1шт.

20

M35799

SPLIT PIN/SAFETY PIN

1шт.
