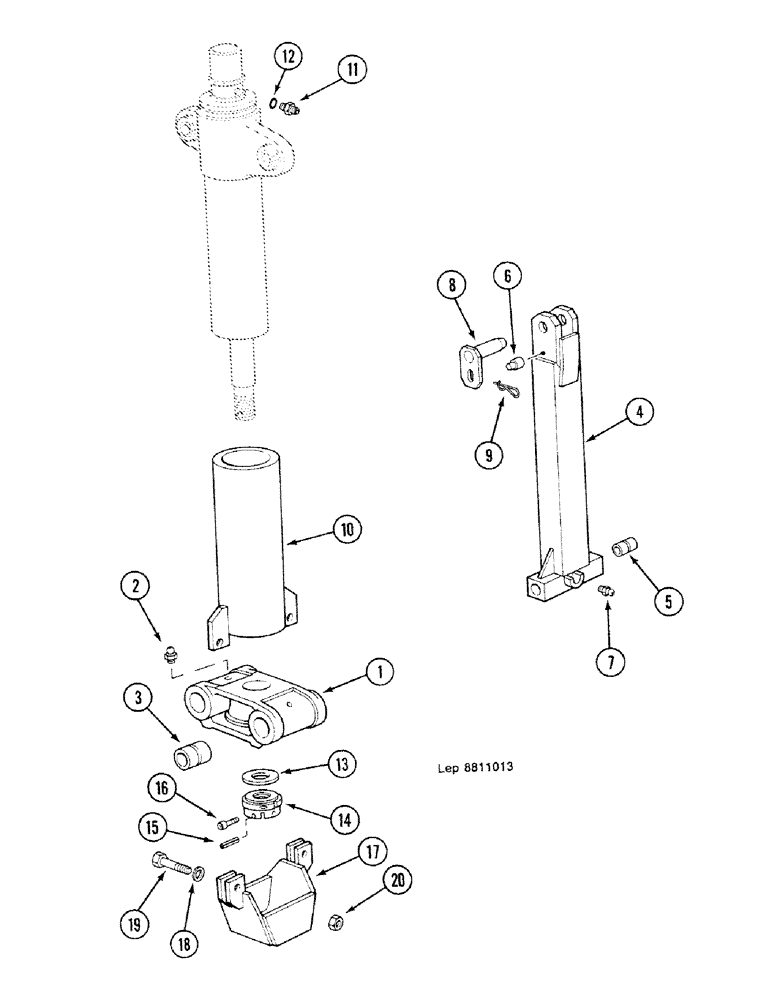

Запчасти Case 688C (9G-66) - TRENCHING CLAMSHELL YOKE ARM (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

J44697

LINKAGE YOKE

1шт.

2

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

3

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

4

U47789

ARM

Consist Of : 5, 6

2шт.

5

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

6

C27855

SHAFT LOCK

2шт.

7

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

8

G30918

PIN

30

2шт.

9

W36015

SPLIT PIN/SAFETY PIN

2шт.

10

Q51856

PROTECTOR

1шт.

11

L2337592

UNION

Consist Of : 12

2шт.

12

S945293

WASHER, SEALING

SEAL WASHER "18.5 x 23.9 x 1.5"

2шт.

13

G45523

WASHER

60 x 109 x 13

1шт.

14

N52406

NUT

1шт.

15

M35799

SPLIT PIN/SAFETY PIN

1шт.

16

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

2шт.

17

P51855

PROTECTOR

1шт.

18

NLS

NO LONGER SERVICED

W18

2шт.

19

E433830

BOLT,Hex, M18 x 40

2шт.

20

C34180

NUT

M18

2шт.
