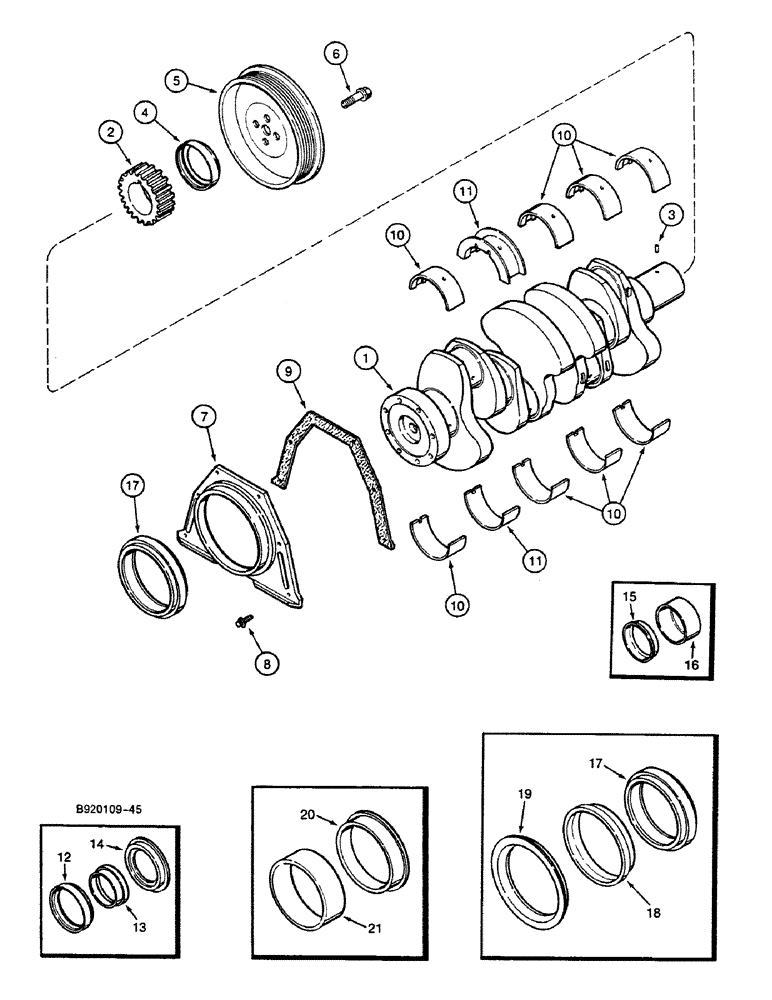

Запчасти Case 688C (2-52) - CRANKSHAFT (01) - ENGINE

1

J918323

CRANKSHAFT

Consist Of : 2, 3, Replace : J916190

1шт.

J929036R

REMAN-CRANKSHAFT

688C (S/N 10501 & AFTER), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

Replace : J901258 / J912883

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

DOWEL

1шт.

4

SEAL Order : J904353

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

7

J913447

SEAL RETAINER

SUPPORT

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

9

J914386

GASKET

1шт.

10

A77405

CRANKSHAFT BEARING

SET

4шт.

10

A77472

BEARING SET

SET Thickness : 0.25mm

4шт.

10

A77474

BEARING SET

SET Thickness : 0.50mm

4шт.

10

A77476

BEARING SET

SET Thickness : 0.75mm

4шт.

10

A77478

BEARING SET

SET Thickness : 1.00mm

4шт.

11

A77406

CRANKSHAFT BEARING

SET

1шт.

11

A77473

THRUST BEARING

SET Thickness : 0.25mm

1шт.

11

A77475

THRUST BEARING

SET Thickness : 0.50mm

1шт.

11

A77477

THRUST BEARING

SET Thickness : 0.75mm

1шт.

11

A77479

THRUST BEARING

SET Thickness : 1.00mm

1шт.

J904353

GASKET KIT

spare part Consist Of : 12, 13, 14

1шт.

12

SEAL Order : J904453

1шт.

13

TOOLS Order : J904353

1шт.

14

TOOLS Order : J904353

1шт.

J906080

PACKAGE, REPAIR

spare part Consist Of : 15, 16

1шт.

15

SLEEVE Order : J906080

1шт.

16

TOOLS Order : J906080

1шт.

J909410

GASKET KIT

spare part Consist Of : 17, 18, 19

1шт.

17

SEAL Order : J909410

1шт.

18

TOOLS Order : J909410

1шт.

19

TOOLS Order : J909410

1шт.

J906081

SLEEVE

SET spare part Consist Of : 20, 21

1шт.

20

SLEEVE Order : J906081

1шт.

21

TOOLS Order : J906081

1шт.
