(9G-40) - EARTHMOVING CLAMSHELLS (400L 0.97M)

Запчасти Case 688C (9G-40) - EARTHMOVING CLAMSHELLS (400L 0.97M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

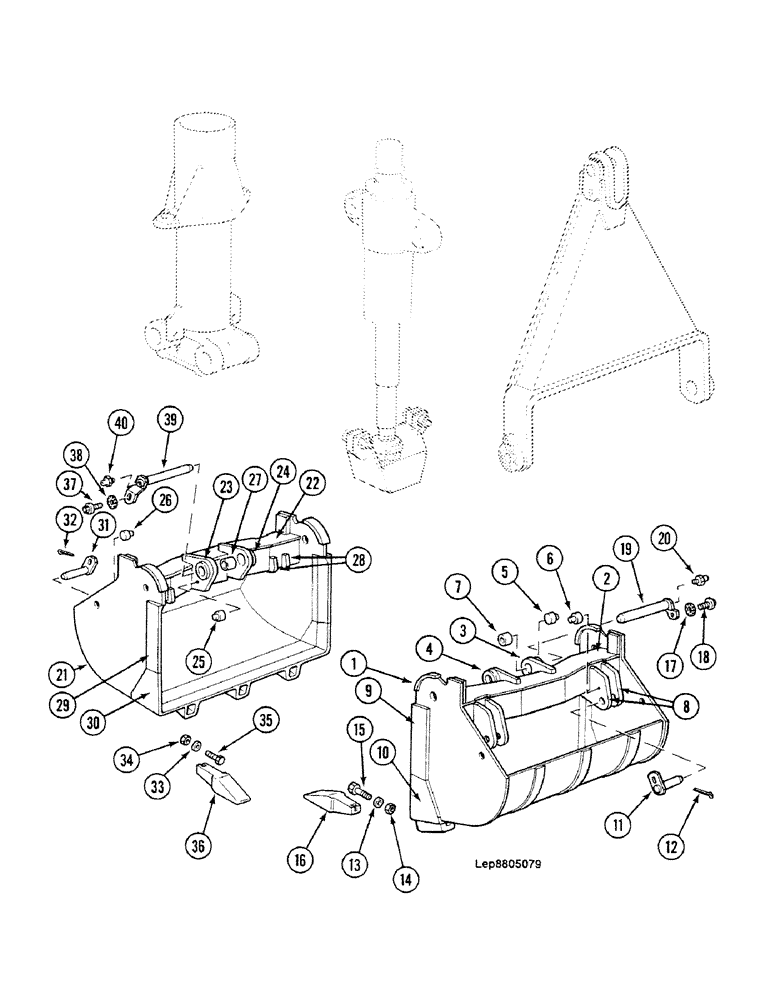

Схема запчастей Case 688C - (9G-40) - EARTHMOVING CLAMSHELLS (400L 0.97M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS
16
38
26
30
20
2
23
11
3
7
4
18
21
19
24
35
33
28
27
39
40
22
36
32
8
34
17
5
6
13
10
15
31
1
9
37
12
25
14
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E344659

SHELL

Consist Of : 2-10

1шт.

2

G344661

BEAM

MEMBER Consist Of : 3-8

1шт.

3

Q427101

WELDABLE LUG

1шт.

4

B327199

WELDABLE LUG

1шт.

5

N29153

SHAFT LOCK

1шт.

6

C27855

SHAFT LOCK

2шт.

7

P35962

BUSHING

2шт.

8

R124146

WELDABLE LUG

4шт.

9

P104019

STIFFENER

2шт.

10

R104021

BLADE

1шт.

11

G30918

PIN

30

2шт.

12

W35532

SPLIT PIN/SAFETY PIN

2шт.

13

Z35005

WASHER

M14 N

4шт.

14

Z134549

NUT

M14

4шт.

15

86523012

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

M14 x 60

4шт.

16

K104015

TOOTH

4шт.

17

H34714

WASHER

W14

1шт.

18

S30859

SCREW

D14

1шт.

19

U30976

PIN

40, Consist Of : 20

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

21

F344660

SHELL

Consist Of : 22-30

1шт.

22

G344661

BEAM

MEMBER Consist Of : 23-28

1шт.

23

Q427101

WELDABLE LUG

1шт.

24

B327199

WELDABLE LUG

1шт.

25

N29153

SHAFT LOCK

1шт.

26

C27855

SHAFT LOCK

2шт.

27

P35962

BUSHING

2шт.

28

R124146

WELDABLE LUG

4шт.

29

P104019

STIFFENER

2шт.

30

Q104020

BLADE

1шт.

31

G30918

PIN

30

2шт.

32

W35532

SPLIT PIN/SAFETY PIN

2шт.

33

Z35005

WASHER

M14 N

3шт.

34

Z134549

NUT

M14

3шт.

35

86523012

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

M14 x 60

3шт.

36

K104015

TOOTH

3шт.

37

H34714

WASHER

W14

1шт.

38

S30859

SCREW

D14

1шт.

39

U30976

PIN

40, Consist Of : 40

1шт.

40

J45801

LUBE NIPPLE,M8 x 1.25

2шт.
