Запчасти Case 688C (2-48) - CYLINDER BLOCK (01) - ENGINE

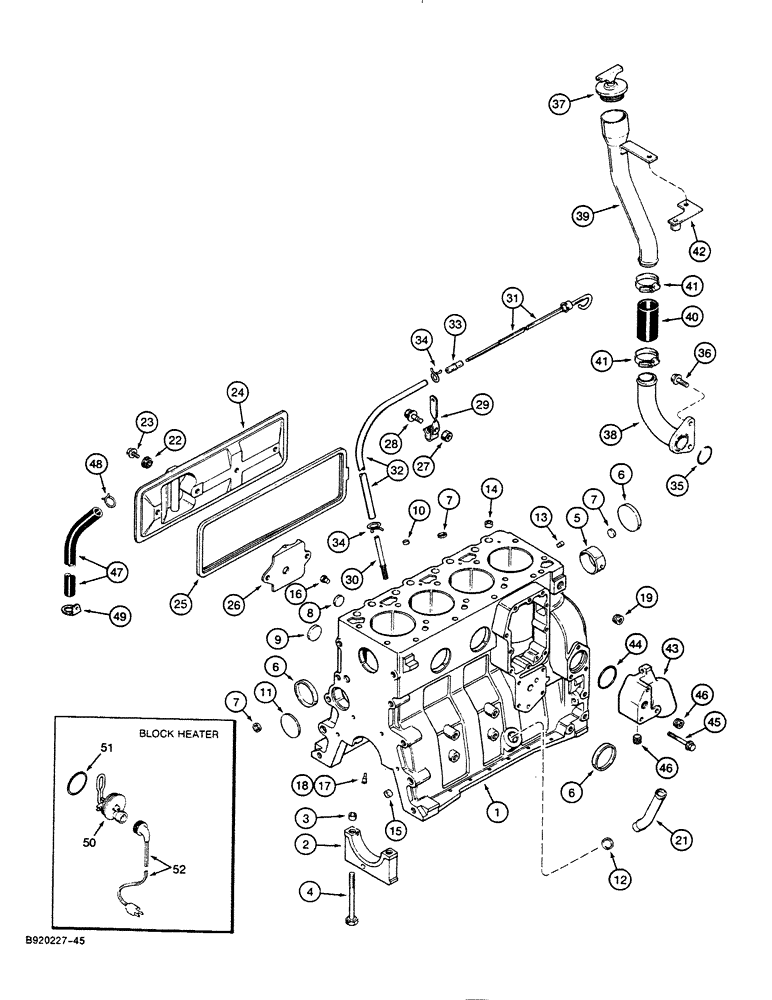

Схема запчастей Case 688C - (2-48) - CYLINDER BLOCK (01) - ENGINE
19
46
25
5
3
42
48
40
34
41
47
35
45
10
22
34
9
7
30
27
7
51
12
14
15
28
6
21
17
49
8
1
41
44
52
38
7
39
23
46
43
37
29
36
24
6
13
33
16
2
4
6
18
11
50
31
26
32

Артикул

Название

Примечание

Количество

J920387

SKELETON ENGINE

HOUSING Consist Of : 1-19, Replace : J905378, Consist of : Housing, pistons assembly, connecting rods, crankshaft, bearings, screw, dowels, sleeves and housing, repairing kit J905813

1шт.

1

J916254

BLOCK ASSY.

HOUSING Consist Of : 2-8, Replace : J905376

1шт.

2

J900967

BEARING CAP

5шт.

3

J900068

BEARING WASHER

DOWEL

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

10шт.

5

BUSHING, See Figure : 2-58

1шт.

6

A77782

PLUG

58 mm OD, Replace : J900965

4шт.

7

J900956

PLUG

18 mm OD

3шт.

8

A77539

PLUG

26 mm

2шт.

J905813

PACKAGE, REPAIR

spare part Consist Of : 9-17, 19, (-21100766)::

1шт.

J802641

PACKAGE, REPAIR

SET spare part Consist Of : 9-16, 18, 19, (21100767-)::

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

J900687

PLUG

60 mm OD

1шт.

12

A77439

PLUG

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

DOWEL 16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

DOWEL 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

17

J901020

NOZZLE CAP

4шт.

18

J919002

NOZZLE CAP

4шт.

19

A77429

PLUG

1шт.

21

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

22

J900267

SEAL

4шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

J916441

COVER

PLATE

1шт.

25

J904056

GASKET

1шт.

26

J907586

BAFFLE

1шт.

27

825-11410

NUT,M10 x 1.25, Cl 8

Replace : J900240

1шт.

28

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

29

J905804

BRACKET

1шт.

30

J905425

TUBE,9.52 mm OD x 93 mm L

1шт.

31

J907709

DIPSTICK

GAUGE

1шт.

32

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

1шт.

33

J905802

FITTING,9.53 mm OD x 39 mm L

END fitting

1шт.

34

214-103

HOSE CLAMP,#8, 1/2", Spring

COLLAR

2шт.

35

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

36

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

37

A77424

FILLER CAP

1шт.

38

J912687

TUBE,38.1 mm ID x 195.9 mm L

1шт.

39

J912689

TUBE,38.1 mm OD x 371.1 mm L

1шт.

40

J912686

HOSE,38.1mm ID x 84mm L

1шт.

41

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

42

J912683

TUBE

SUPPORT

1шт.

43

J903103

MANIFOLD

1шт.

44

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

45

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

46

A77429

PLUG

2шт.

47

J906593

HOSE

1шт.

48

J904230

CLAMP,25.4mm

COLLAR

1шт.

49

J909670

CLIP

COLLAR

1шт.

A77634

KIT

heater Consist Of : 50, 51, 52

1шт.

50

ELEMENT Order : A77634

1шт.

51

J910517

O-RING

1шт.

52

J905113

CABLE

1шт.

Выбрано товаров: 55
