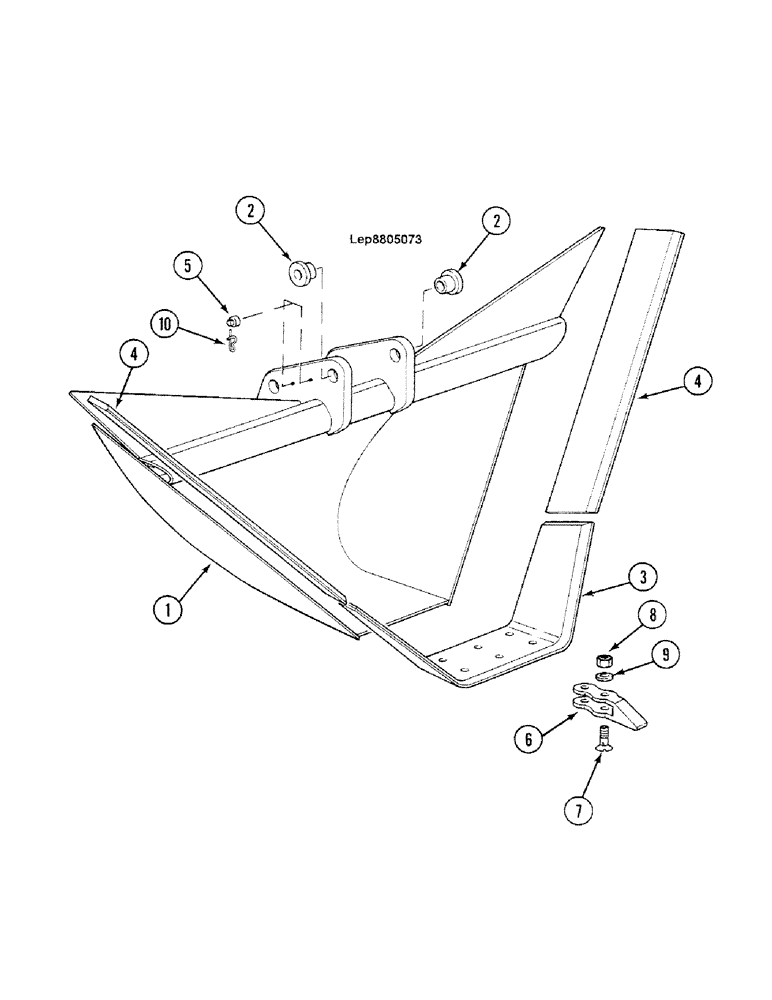

Запчасти Case 688C (9G-28) - V-LINE BUCKET (0.50M 2.60M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BUCKET Consist Of : 2-5, See To Sales Department

1шт.

2

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

60 x 75 x 40

4шт.

3

U2326790

BLADE

1шт.

4

P1721264

STIFFENER

2шт.

5

F50053

SHAFT LOCK

2шт.

6

B44621

TOOTH

3шт.

7

W32496

BOLT,M16 x 70mm, Cl 8.8

6шт.

8

Q34169

NUT

M16

6шт.

9

J34715

WASHER

W16

6шт.

10

C36020

SPLIT PIN/SAFETY PIN

2шт.
