(9G-26) - DITCH CLEANING BUCKET (620L 1.80M)

Запчасти Case 688C (9G-26) - DITCH CLEANING BUCKET (620L 1.80M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

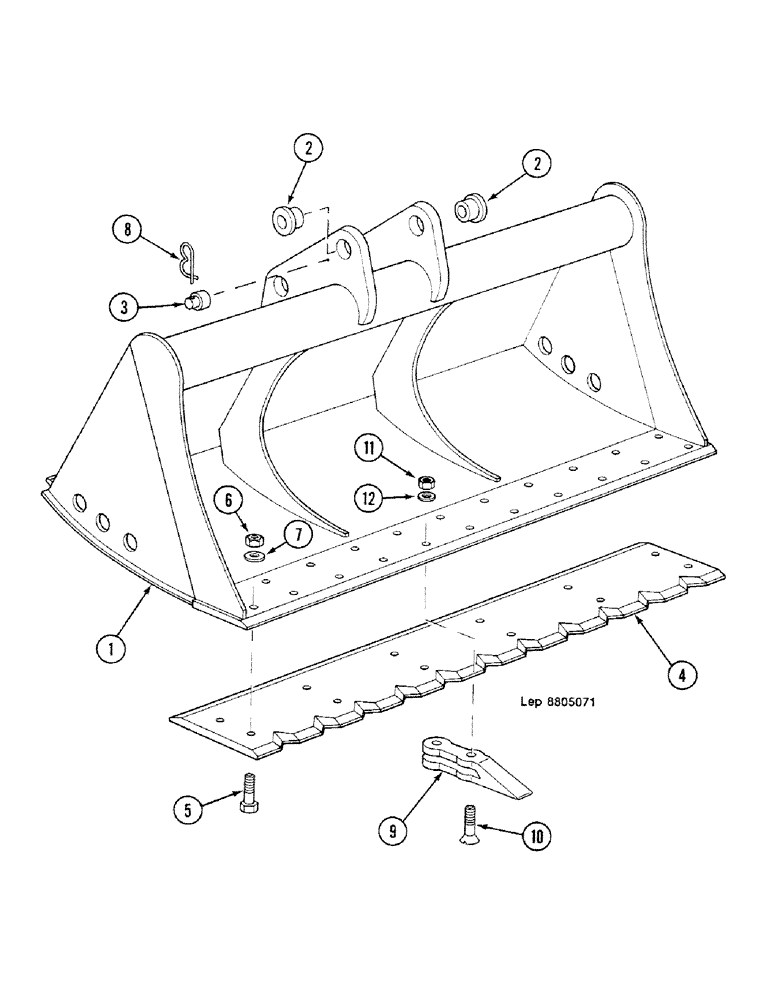

Схема запчастей Case 688C - (9G-26) - DITCH CLEANING BUCKET (620L 1.80M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS
4
2
6
8
2
3
12
7
10
5
9
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

BUCKET, See To Sales Department, Consist Of : 2, 3

1шт.

2

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

60 x 75 x 40

4шт.

3

F50053

SHAFT LOCK

2шт.

4

G4623466

BLADE

1шт.

5

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

12шт.

6

Q34169

NUT

M16

12шт.

7

J4328746

WASHER

"16.5 x 11 x 30"

12шт.

8

C36020

SPLIT PIN/SAFETY PIN

2шт.

9

B44621

TOOTH

11шт.

10

W32496

BOLT,M16 x 70mm, Cl 8.8

22шт.

11

Q34169

NUT

M16

22шт.

12

J34715

WASHER

W16

22шт.
