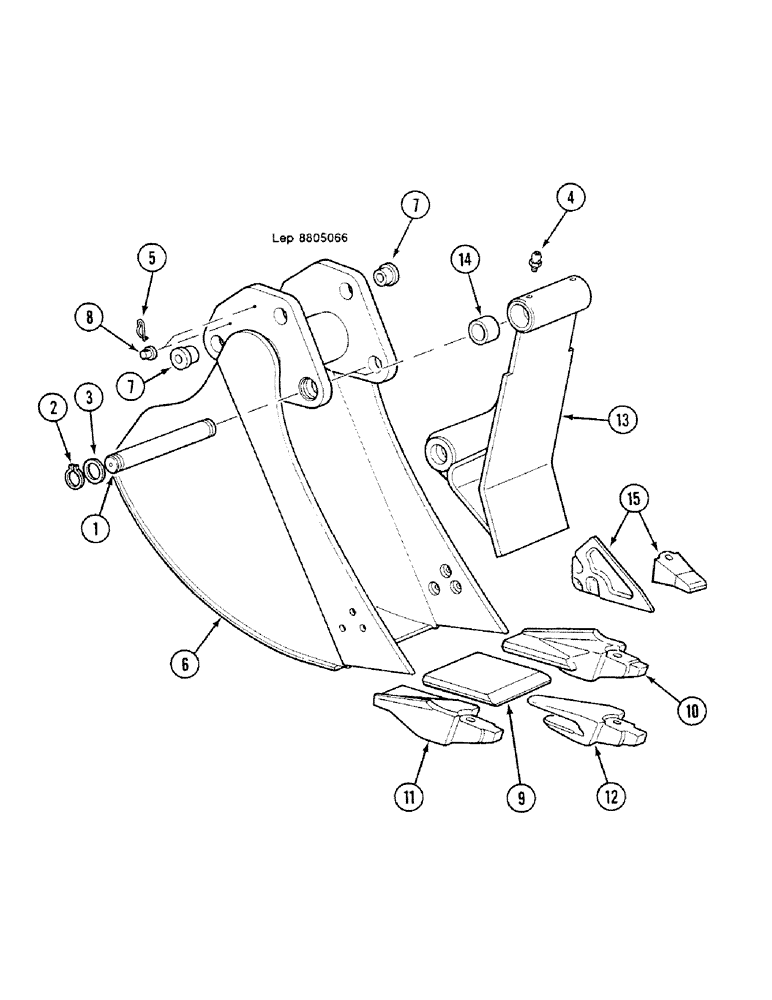

Запчасти Case 688C (9G-16) - EJECTOR BACKHOE BUCKET (0.45M), (-XXXXX) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

R5327873

PIN

60

1шт.

2

Z36339

RING, SNAP

RING SNAP

2шт.

3

J2745403

WASHER

61 x 75 x 4

2шт.

4

W45836

LUBE NIPPLE,1/8"-27 NPT

2шт.

5

C36020

SPLIT PIN/SAFETY PIN

2шт.

6

BUCKET Consist Of : 7-12, See To Sales Department

1шт.

7

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

4шт.

8

F50053

SHAFT LOCK

2шт.

B1504063

BLADE

Consist Of : 9-12

1шт.

9

BLADE Order : B1504063

1шт.

10

K1504048

SHANK, BUCKET TOOTH

WEDGE Casted Type Version

1шт.

11

J1504047

SHANK, BUCKET TOOTH

WEDGE Casted Type Version

1шт.

12

W604276

SUPPORT

1шт.

13

Z754974

KNOCKER

EJECTOR Consist Of : 14

1шт.

14

B1528673

BUSHING

2шт.

15

TIPS blade, See Figure : 9G-20

1шт.
