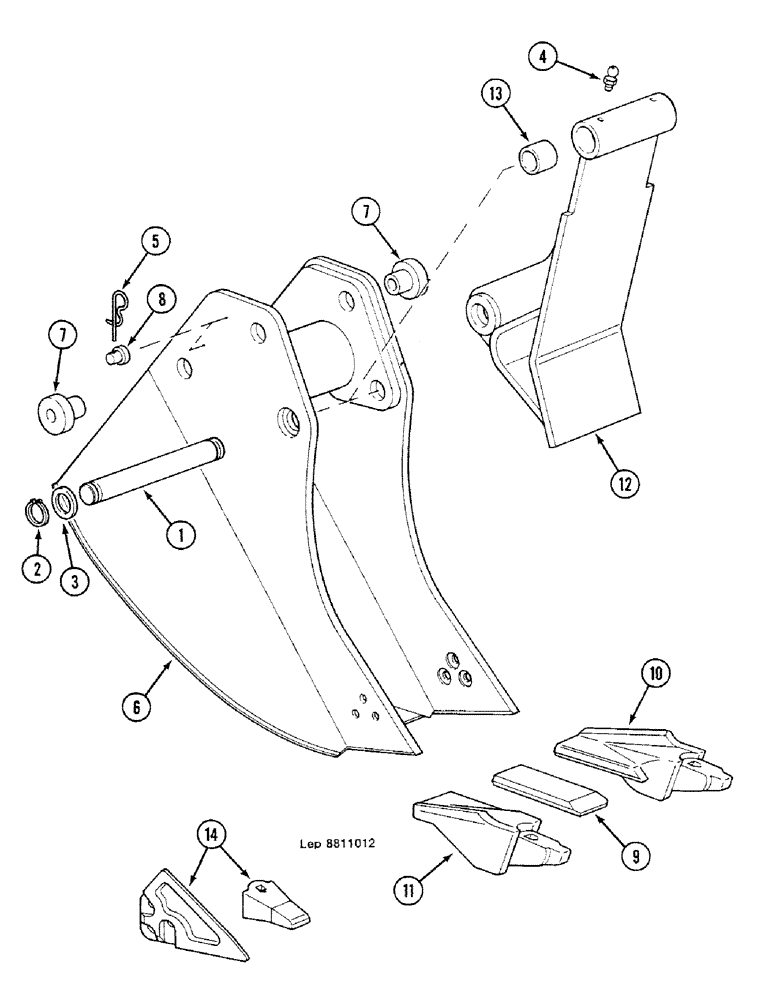

Запчасти Case 688C (9G-14) - EJECTOR BACKHOE BUCKET (0.35M), (XXXXX-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

R5327873

PIN

60

1шт.

2

Z36339

RING, SNAP

RING SNAP

2шт.

3

J2745403

WASHER

61 x 75 x 4

2шт.

4

W45836

LUBE NIPPLE,1/8"-27 NPT

2шт.

5

C36020

SPLIT PIN/SAFETY PIN

2шт.

6

BUCKET Consist Of : 7-11, See To Sales Department

1шт.

7

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

4шт.

8

F50053

SHAFT LOCK

2шт.

N5754934

EDGE, CUTTING

Consist Of : 9, 10, 11

1шт.

9

BLADE Order : N5754934

1шт.

10

J1604051

SHANK, BUCKET TOOTH

WEDGE Matrix Type Version

1шт.

11

H1604050

SHANK, BUCKET TOOTH

WEDGE Matrix Type Version

1шт.

12

A754975

KNOCKER

EJECTOR Consist Of : 13

1шт.

13

B1528673

BUSHING

2шт.

14

TIPS blade, See Figure : 9G-20

1шт.
