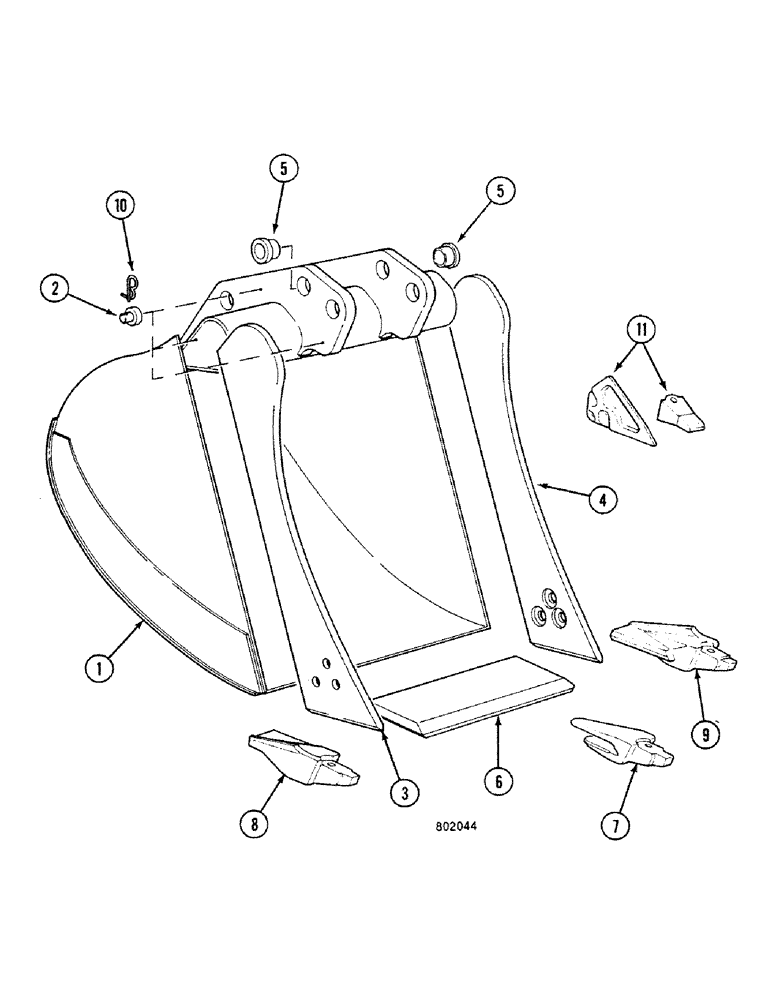

Запчасти Case 688C (9G-06) - BACKHOE BUCKET, (XXXXX-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BUCKET Consist Of : 2-9, See To Sales Department, For Backhoe Buceket

1шт.

2

F50053

SHAFT LOCK

For Backhoe Buceket

2шт.

3

J3322542

STIFFENER

For Backhoe Buceket

1шт.

4

K3322543

STIFFENER

For Backhoe Buceket

1шт.

5

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

60 x 75 x 40, For Backhoe Buceket

6шт.

G5754928

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket

1шт.

6

BLADE Order : G5754928, For Backhoe Buceket 0.60M - 370L

1шт.

H5754929

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 0.60M - 370L

1шт.

6

BLADE Order : H5754929, For Backhoe Buceket 0.75M - 480L

1шт.

J5754930

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 0.75M - 480L

1шт.

6

BLADE Order : J5754930, For Backhoe Buceket 0.85M - 560L

1шт.

K5754931

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 0.85M - 560L

1шт.

6

BLADE Order : K5754931, For Backhoe Buceket 0.95M - 630L

1шт.

L5754932

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 0.95M - 630L

1шт.

6

BLADE Order : L5754932, For Backhoe Buceket 1.05M - 710L

1шт.

M5754933

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 1.05M - 710L

1шт.

6

BLADE Order : M5754933, For Backhoe Buceket 1.20M - 820L

1шт.

S4755519

EDGE, CUTTING

Consist Of : 6-9, For Backhoe Buceket 1.20M - 820L

1шт.

6

BLADE Order : S4755519, For Backhoe Buceket 1.30 - 1000L

1шт.

7

W604276

SUPPORT

For Backhoe Buceket 1.30 - 1000L

1шт.

8

H1604050

SHANK, BUCKET TOOTH

WEDGE Matrix Type Version, For Backhoe Buceket 1.30 - 1000L

1шт.

9

J1604051

SHANK, BUCKET TOOTH

WEDGE Matrix Type Version, For Backhoe Buceket 1.30 - 1000L

1шт.

10

C36020

SPLIT PIN/SAFETY PIN

For Backhoe Buceket 1.30 - 1000L

2шт.

11

TIPS blade, See Figure : 9G-20, For Backhoe Buceket 1.30 - 1000L

1шт.
