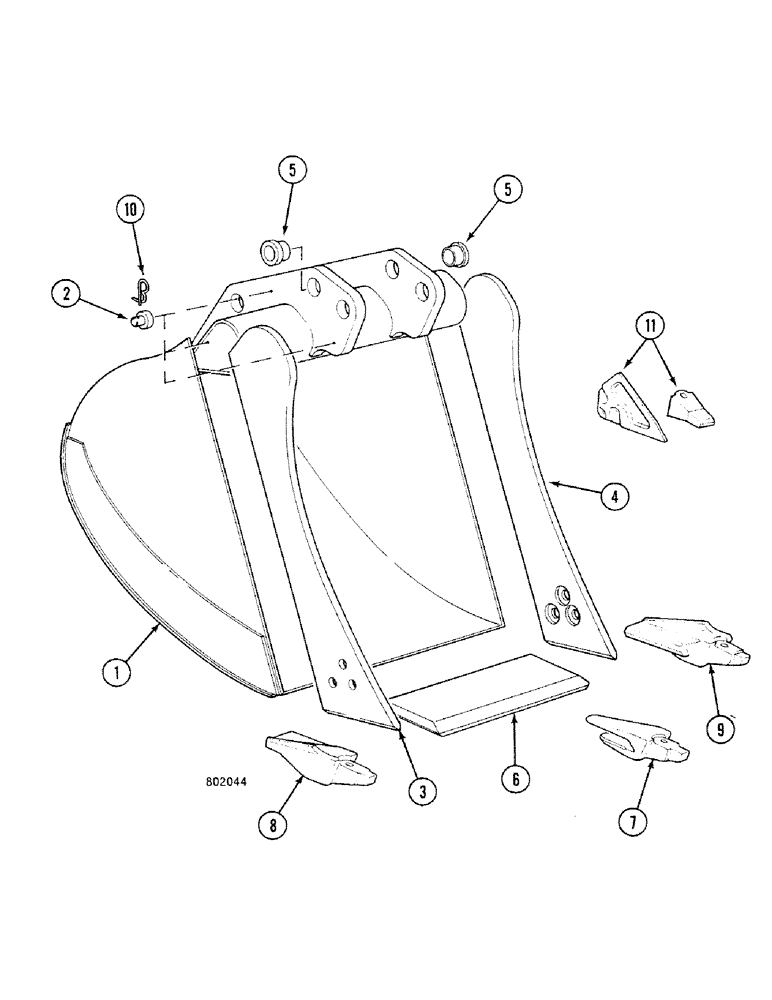

Запчасти Case 688C (9G-02) - BACKHOE BUCKET, (-XXXXX) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BUCKET Consist Of : 2-9, See To Sales Department, For Backhoe Bucket

1шт.

2

F50053

SHAFT LOCK

For Backhoe Bucket

2шт.

3

A4424280

STIFFENER

For Backhoe Bucket

1шт.

4

Z4424279

STIFFENER

For Backhoe Bucket

1шт.

5

J5428744

BUSHING,60.2mm ID x 85mm OD x 40mm L

60 x 75 x 40, For Backhoe Bucket

6шт.

C1504041

BLADE

Consist Of : 6-9, For Backhoe Bucket

1шт.

6

BLADE Order : C1504041, For Backhoe Bucket 0.60M - 370L

1шт.

D1504042

BLADE

Consist Of : 6-9, For Backhoe Bucket 0.60M - 370L

1шт.

6

BLADE Order : D1504042, For Backhoe Bucket 0.75M - 480L

1шт.

E1504043

BLADE

Consist Of : 6-9, For Backhoe Bucket 0.75M - 480L

1шт.

6

BLADE Order : E1504043, For Backhoe Bucket 0.85M - 560L

1шт.

F1504044

BLADE

Consist Of : 6-9, For Backhoe Bucket 0.85M - 560L

1шт.

6

BLADE Order : F1504044, For Backhoe Bucket 0.95M - 630L

1шт.

G1504045

BLADE

Consist Of : 6-9, For Backhoe Bucket 0.95M - 630L

1шт.

6

BLADE Order : G1504045, For Backhoe Bucket 1.05M - 710L

1шт.

X1604018

BLADE

Consist Of : 6-9, For Backhoe Bucket 1.05M - 710L

1шт.

6

BLADE Order : X1604018, For Backhoe Bucket 1.20M - 820L

1шт.

Z1604019

BLADE

Consist Of : 6-9, For Backhoe Bucket 1.20M - 820L

1шт.

6

BLADE Order : Z1604019, For Backhoe Bucket 1.30M - 1000L

1шт.

7

W604276

SUPPORT

For Backhoe Bucket 1.30M - 1000L

1шт.

8

J1504047

SHANK, BUCKET TOOTH

WEDGE Casted Type Version, For Backhoe Bucket 1.30M - 1000L

1шт.

9

K1504048

SHANK, BUCKET TOOTH

WEDGE Casted Type Version, For Backhoe Bucket 1.30M - 1000L

1шт.

10

C36020

SPLIT PIN/SAFETY PIN

For Backhoe Bucket 1.30M - 1000L

2шт.

11

TIPS blade, See Figure : 9G-20, For Backhoe Bucket 1.30M - 1000L

1шт.
