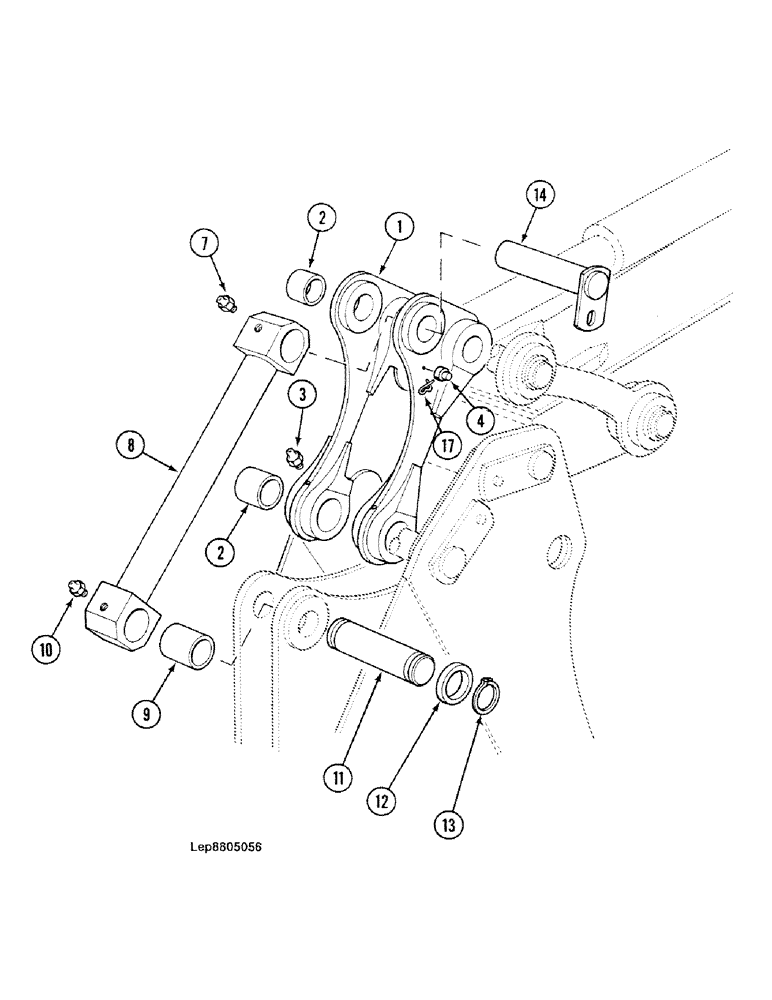

Запчасти Case 688C (9F-24) - EJECTOR CONTROL BUCKET (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

Z2754985

ROD, CONNECTING

Consist Of : 2, 3, 4

1шт.

2

C4628706

BUSHING

60 x 75 x 58

4шт.

3

W45836

LUBE NIPPLE,1/8"-27 NPT

4шт.

4

F50053

SHAFT LOCK

1шт.

8

Q754989

PITMAN

LINK connecting Consist Of : 9, 10

1шт.

9

Q1928610

BUSHING

60 x 70 x 108

2шт.

10

W45836

LUBE NIPPLE,1/8"-27 NPT

4шт.

11

U5327876

PIN,60mm OD x 240mm L

60

1шт.

12

L145347

WASHER,61mm ID x 110mm OD x 2mm Thk

61 x 110 x 2

1шт.

13

Z36339

RING, SNAP

RING SNAP

2шт.

14

H2430969

PIN

60

1шт.

17

C36020

SPLIT PIN/SAFETY PIN

1шт.
