Запчасти Case 688C (2-42) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

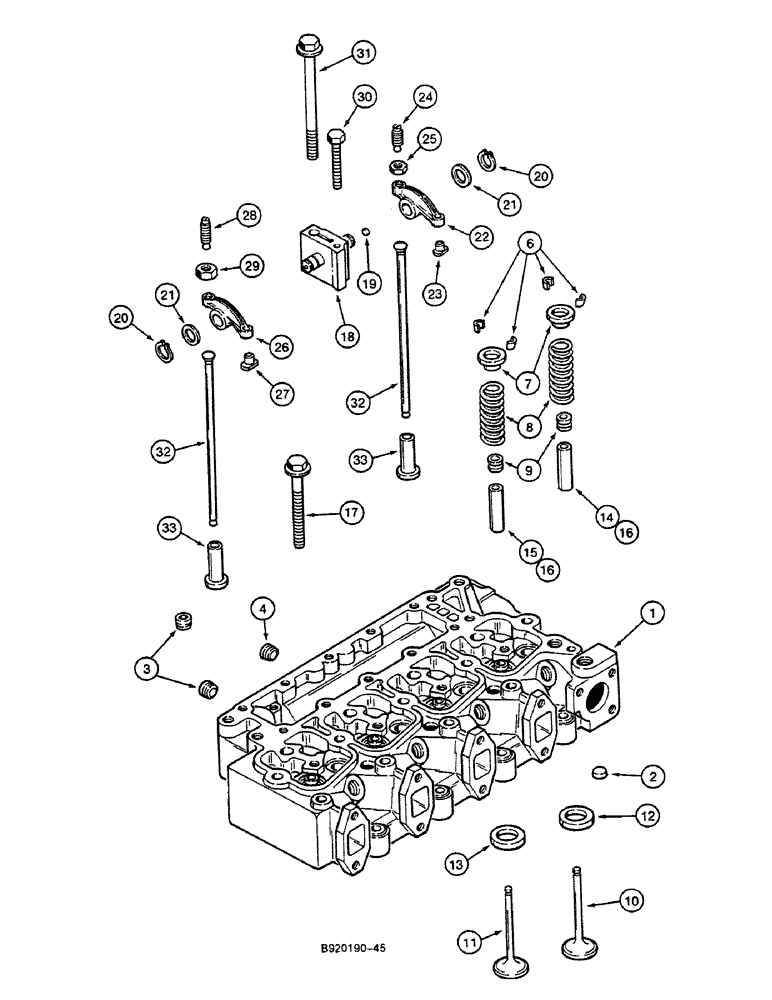

Схема запчастей Case 688C - (2-42) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE
13
6
22
12
28
25
33
16
7
21
1
2
15
30
4
21
16
26
24
11
31
32
29
14
8
3
20
18
10
19
9
32
20
27
17
33
23

Артикул

Название

Примечание

Количество

J910275

HEAD (CYLINDER)

valve Consist Of : 1-11, Injector : 9mm

1шт.

J920611

HEAD (CYLINDER)

valve Consist Of : 1-11, Injector : 7mm

1шт.

1

J913389

HEAD (CYLINDER)

valve Consist Of : 2, Injector : 9mm

1шт.

1

J920005

HEAD (CYLINDER)

valve Consist Of : 2, Injector : 7mm

1шт.

2

A77783

PLUG

Replace : J902606

5шт.

3

A77429

PLUG

1/2-14PT

5шт.

4

J906619

PLUG,1/8" - 27

1/8-27PT

2шт.

6

J900250

SCREW

KEEPER

16шт.

7

J900299

RETAINER

CUPEL

8шт.

8

J900276

VALVE SPRING

8шт.

9

J901097

SEAL

8шт.

10

J920867

VALVE

intake Replace : J901117

4шт.

11

J920868

VALVE

exhaust Replace : J901607

4шт.

12

J906854

SEAT, VALVE

intake

4шт.

13

J904105

SEAT, VALVE

exhaust

4шт.

14

J904408

GUIDE

intake 14 mm OD

4шт.

15

J904409

GUIDE

exhaust 14 mm OD

4шт.

16

J906206

GUIDE

11 mm OD, Intake Guide and Exhaust Guide::

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

M12 x 1.75 x 70, Replaces J903938

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

M12 x 1.75 x 120, Replaces J903939

10шт.

18

J910814

SUPPORT

Consist Of : 19

4шт.

19

J907555

PLUG

1/4-18PT

1шт.

20

J900242

SNAP RING

8шт.

21

J900245

WASHER

8шт.

22

J910811

ROCKER

ARM intake Consist Of : 23, 24, 25::

4шт.

23

ARM rocker basic Order : J910811

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

1шт.

26

J910810

ROCKER

ARM exhaust Consist Of : 27, 28, 29::

4шт.

27

ARM rocker basic Order : J910810

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

M12 x 1.75 x 180, Replaces J903940

4шт.

32

J904679

PUSH ROD

8шт.

33

J907240

TAPPET

PUSHER

8шт.

Выбрано товаров: 36
