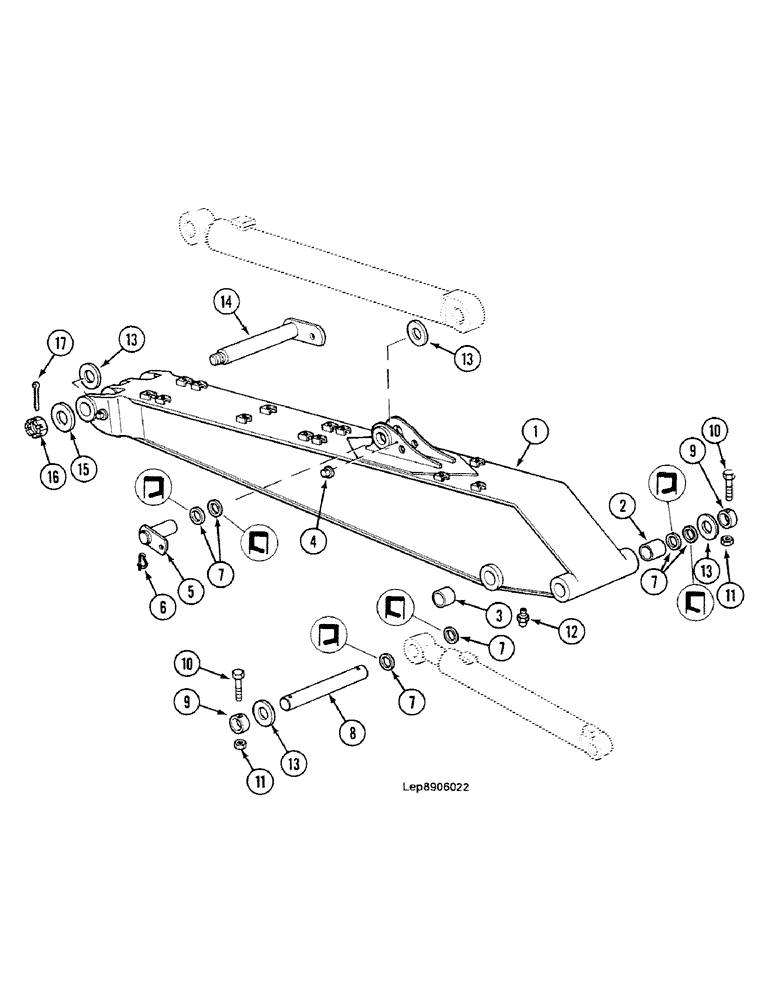

Запчасти Case 688C (9F-14) - LINKED BOOM (BOOM 3.13M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BOOM Consist Of : 2, 3, 4, See To Sales Department

1шт.

2

D4628776

BUSHING

60 x 75 x 90

2шт.

3

B1528673

BUSHING

60 x 75 x 55

2шт.

4

N1127863

SHAFT LOCK

1шт.

5

U50388

PIN

Dia 60

1шт.

6

C36020

SPLIT PIN/SAFETY PIN

1шт.

7

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

6шт.

8

V1827668

PIN

Dia 60

1шт.

9

G5428765

BUSHING

2шт.

10

86562594

BOLT,Hex, M12 x 110mm, Cl 8.8

2шт.

11

E34596

SAFETY NUT

M12

2шт.

12

W45836

LUBE NIPPLE,1/8"-27 NPT

2шт.

13

L145347

WASHER,61mm ID x 110mm OD x 2mm Thk

61 x 110 x 2

1шт.

14

D3430913

PIN

60, Replace : Q2930973

1шт.

15

L34625

WASHER

M42U

1шт.

16

X34337

NUT

M42

1шт.

17

PA35558

SPLIT PIN

1шт.
