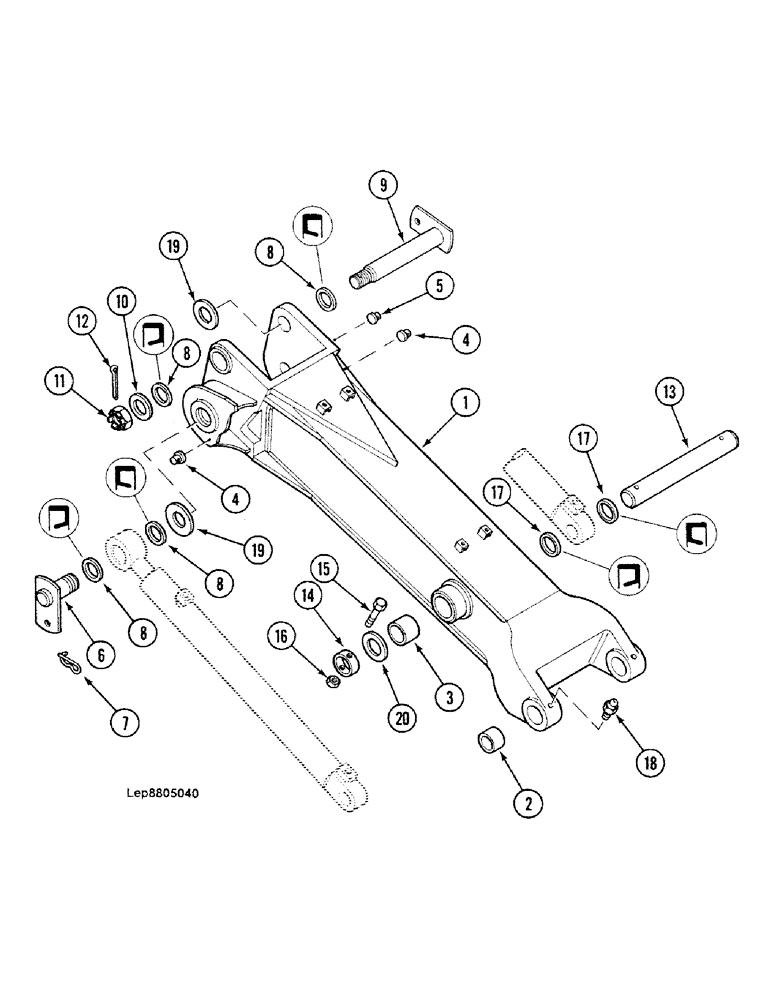

Запчасти Case 688C (9F-12) - LINKED BOOM (PRE-BOOM 1.70M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BOOM main Consist Of : 2-5, See To Sales Department

1шт.

2

B1528673

BUSHING

60 x 75 x 90

2шт.

3

V5428709

BUSHING

70 x 85 x 90

2шт.

4

N1127863

SHAFT LOCK

2шт.

5

F50053

SHAFT LOCK

1шт.

6

M1930999

PIN

60

2шт.

7

C36020

SPLIT PIN/SAFETY PIN

2шт.

8

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

6шт.

9

X2930957

PIN

60

1шт.

10

L34625

WASHER

M42U

1шт.

11

X34337

NUT

M42

1шт.

12

PA35558

SPLIT PIN

1шт.

13

X1827670

PIN

Dia 70

1шт.

14

F5428764

BUSHING

2шт.

15

814-14120

BOLT,Hex, M14 x 2 x 120mm, Cl 8.8

2шт.

16

Z134549

NUT

M14 cl.10

2шт.

17

S151310

SHAFT SEAL

4шт.

18

W45836

LUBE NIPPLE,1/8"-27 NPT

2шт.

19

L145347

WASHER,61mm ID x 110mm OD x 2mm Thk

61 x 110 x 2

1шт.

20

D745341

WASHER

71 x 14 x 2

1шт.
