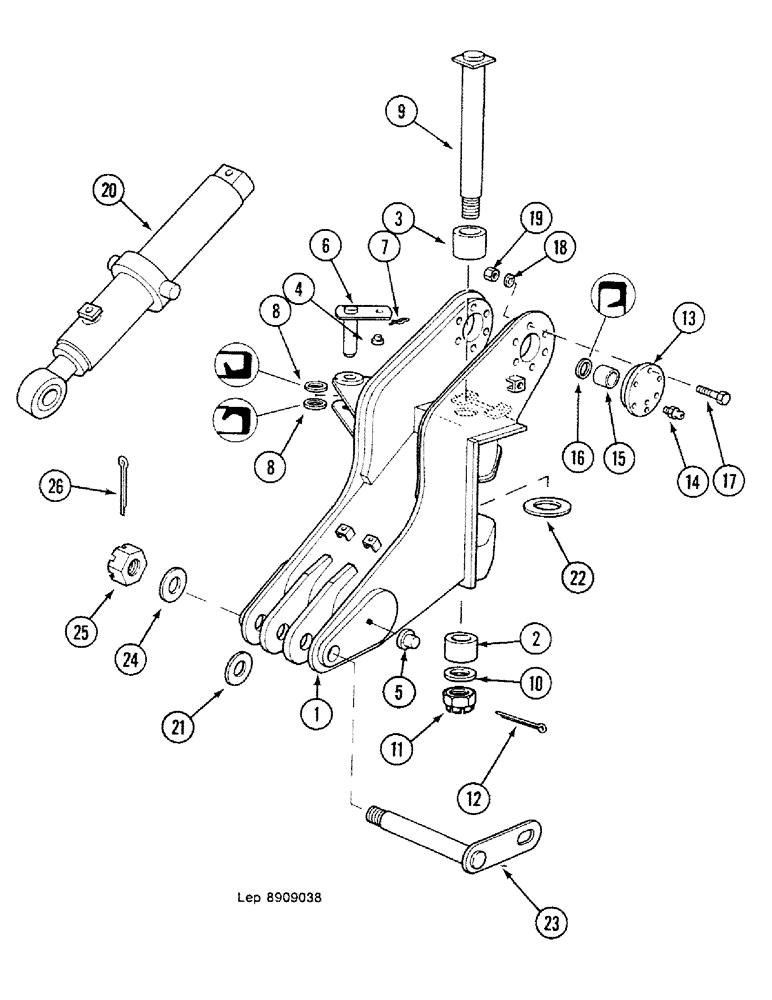

Запчасти Case 688C (9F-06) - OFFSET BACKHOE BOOM (MOBILE SECTION) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

ELEMENT Consist Of : 2-5, See To Sales Department

1шт.

2

F5428741

BUSHING

80 x 95 x 80

1шт.

3

G5428742

BUSHING

80 x 95 x 110

1шт.

4

G50054

SHAFT LOCK

1шт.

5

F50053

SHAFT LOCK

2шт.

6

U50388

PIN

Dia 60

1шт.

7

C36020

SPLIT PIN/SAFETY PIN

1шт.

8

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

2шт.

9

M2930901

PIN

80

1шт.

10

G35035

WASHER

M64 N

1шт.

11

K34325

NUT

M64

1шт.

12

M35569

SPLIT PIN

1шт.

R8346255

CAP

Consist Of : 13-16

2шт.

13

COVER Order : R8346255

1шт.

14

W45836

LUBE NIPPLE,1/8"-27 NPT

1шт.

15

U1528690

BUSHING

60 x 75 x 8

1шт.

16

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

17

87015557

BOLT,Hex, M20 x 100mm, Cl 10.9

12шт.

18

K4328747

WASHER

21 x 14 x 35

12шт.

19

X2434502

SAFETY NUT

M20

12шт.

20

X7946751

CYLINDER ASSY.

See Figure :, Serial Range: 8G-90-9G-94

1шт.

21

L145347

WASHER,61mm ID x 110mm OD x 2mm Thk

1шт.

22

E745342

WASHER,81mm ID x 160mm OD x 2mm Thk

1шт.

23

Z730985

LARGE PIN

PIN, LARGE 60, Replace : Q2930973

1шт.

24

L34625

WASHER

M42 U

1шт.

25

X34337

NUT

M42

1шт.

26

PA35558

SPLIT PIN

1шт.
