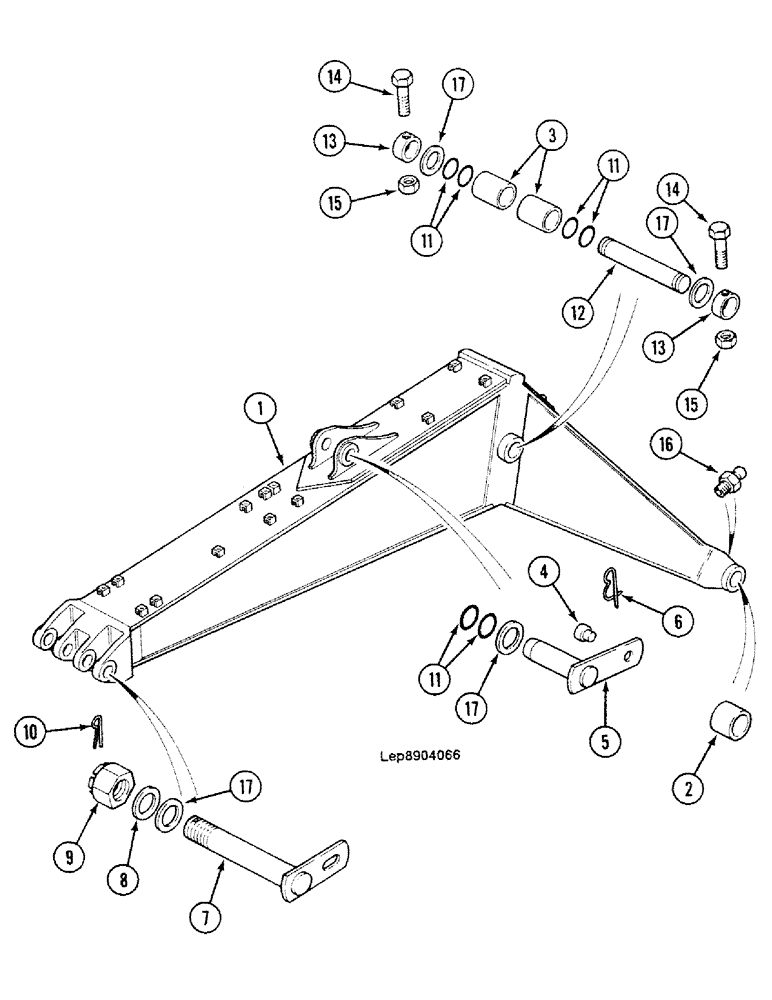

Запчасти Case 688C (9F-02) - BOOM (4.30M) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

BOOM Consist Of : 2, 3, 4, See To Sales Department

1шт.

2

B1528673

BUSHING

60 x 75 x 55

2шт.

3

D4628776

BUSHING

60 x 75 x 90

2шт.

4

N1127863

SHAFT LOCK

1шт.

5

U50388

PIN

Dia 60

1шт.

6

C36020

SPLIT PIN/SAFETY PIN

1шт.

7

D3430913

PIN

60, Replace : Q2930973

1шт.

8

L34625

WASHER

M42 U

1шт.

9

X34337

NUT

M42

1шт.

10

PA35558

SPLIT PIN

1шт.

11

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

75 x 60 x 8

6шт.

12

V1827668

PIN

Dia 60

1шт.

13

G5428765

BUSHING

2шт.

14

86562594

BOLT,Hex, M12 x 110mm, Cl 8.8

2шт.

15

E34596

SAFETY NUT

M12

2шт.

16

933781R1

LUBE NIPPLE,M10 x 1

2шт.

17

L145347

WASHER,61mm ID x 110mm OD x 2mm Thk

61 x 110 x 2

7шт.
