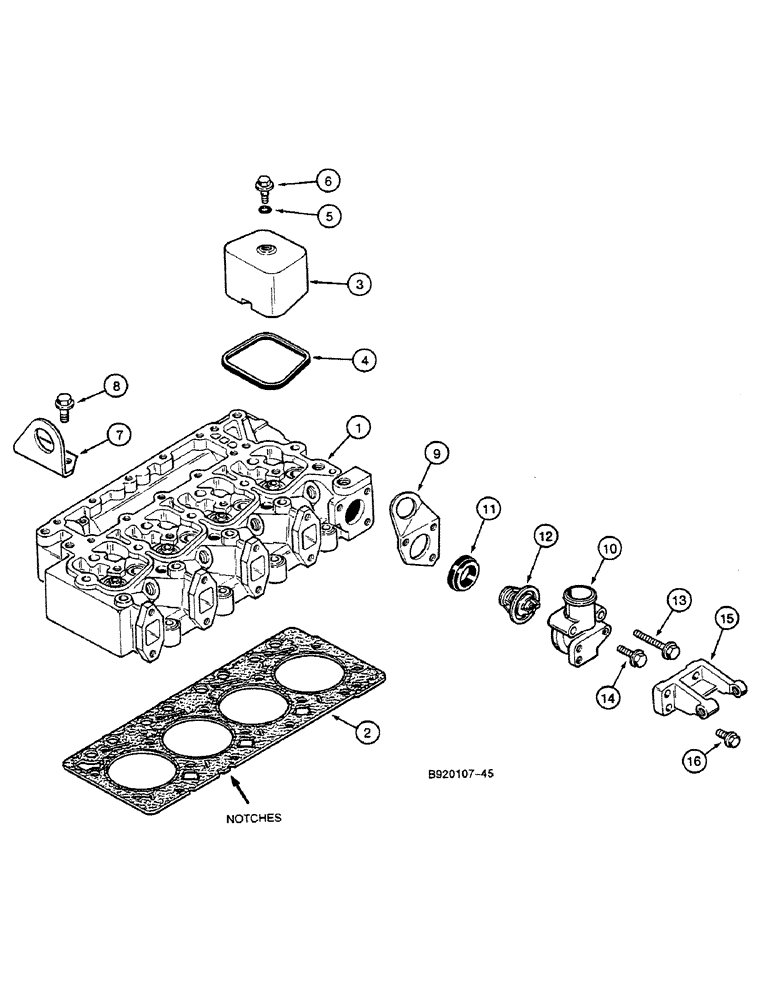

Запчасти Case 688C (2-40) - CYLINDER HEAD COVERS AND GASKET (01) - ENGINE

1

HEAD valve, See Figure : 2-42

1шт.

2

J921393

GASKET

Notches : 1, Thickness : Standard, Replace : J917354

1шт.

2

J921395

CYLINDER HEAD GASKET

Notches : 2, Thickness : 0.25mm, Replace : J917355

1шт.

2

J921397

GASKET

Notches : 3, Thickness : 0.50mm, Replace : J917356

1шт.

3

J902604

COVER

PLATE

4шт.

4

J902666

GASKET

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

1шт.

A77736

THERMOSTAT

THERMOSTAT Consists Of : 11, 12

1шт.

11

J923331

GASKET

Replace : J903301

1шт.

12

THERMOSTAT Order : A77736

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J910713

SUPPORT

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
