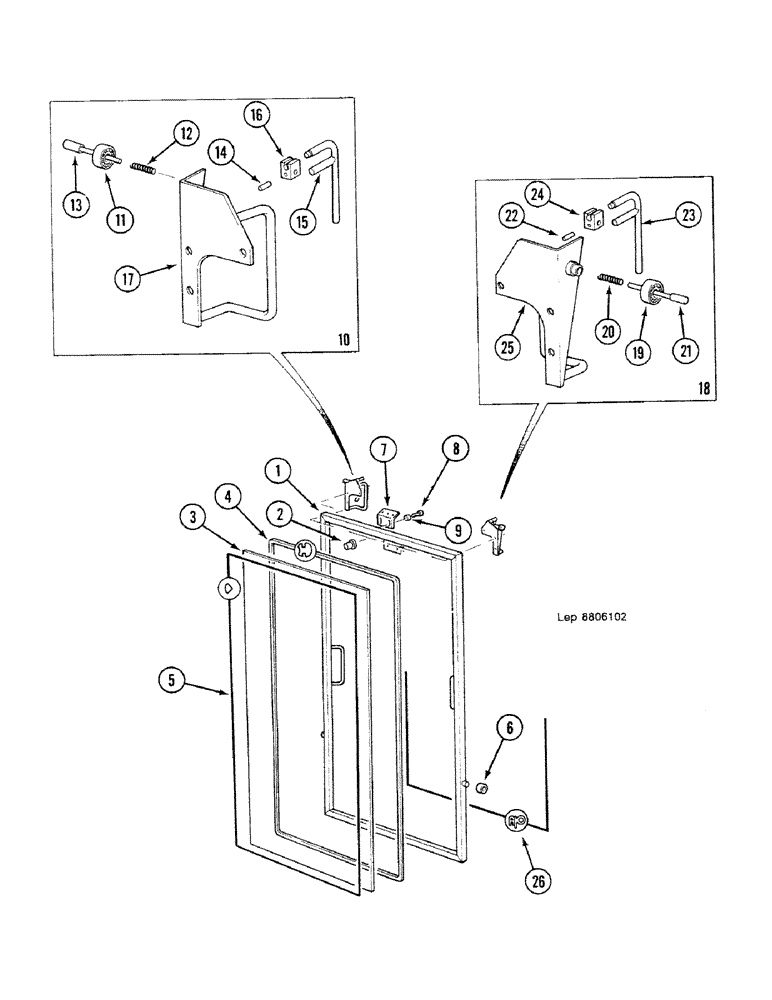

Запчасти Case 688C (9E-28) - WINDSHIELD (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

Z1347086

WINDSHIELD

Consist Of : 1-25

1шт.

1

FRAME Order : Z1347086

1шт.

2

L234587

NUT

M8

8шт.

3

B1347088

WINDSHIELD

1шт.

4

L8046008

SEAL,4504mm L

1шт.

5

Z8560231

SEAL,2243mm L

Order Length : 4600 mm

1шт.

6

A139633

BEARING

2шт.

7

M3226175

SUPPORT

Replace : F2826130

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

9

J745438

WASHER

9 x 3 x 18

8шт.

10

F1352037

LATCH ASSY.

LOCK Consist Of : 11-17, Right, Order : H1352085

1шт.

11

NLS

NO LONGER SERVICED

1шт.

12

E738143

COMPRESSION SPRING,Compression, 11.4mm OD x 64mm L

1шт.

13

PIN Order : H1352085

1шт.

14

B35720

SPLIT PIN/SAFETY PIN

1шт.

15

LEVER Order : H1352085

1шт.

16

FORK Order : H1352085

1шт.

17

BEARING Order : H1352085

1шт.

18

G1352038

LATCH ASSY.

LOCK Consist Of : 19-25, Left, Order : J1352086

1шт.

19

A139633

BEARING

1шт.

20

E738143

COMPRESSION SPRING,Compression, 11.4mm OD x 64mm L

1шт.

21

PIN Order : J1352086

1шт.

22

B35720

SPLIT PIN/SAFETY PIN

1шт.

23

LEVER Order : J1352086

1шт.

24

FORK Order : J1352086

1шт.

25

BEARING Order : J1352086

1шт.

26

X1303155

PROFILE

SEAL Order Length : 1800 mm

1шт.
