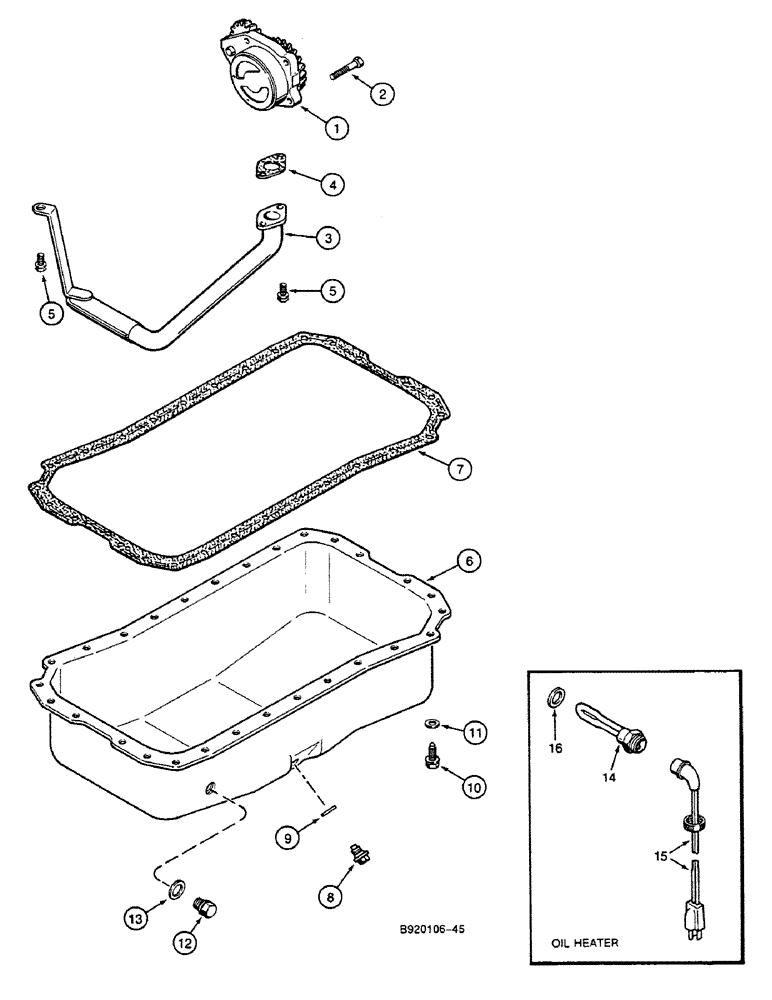

Запчасти Case 688C (2-38) - OIL PUMP AND OIL PAN (01) - ENGINE

1

J918211

PUMP, ENGINE OIL

Replace : J914005

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J905223

TUBE

1шт.

4

J914383

GASKET

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J907570

PAN

HOUSING

1шт.

7

SEAL Order : A77673

1шт.

8

J911638

PLUG,M18 x 1.5

1шт.

9

J920773

SEALING WASHER

Replace : J900216

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25, Replace : J907860

28шт.

11

J907537

SPRING WASHER

28шт.

12

J904386

PLUG

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

seals Consist Of : 4, 7, 9

1шт.

A77490

KIT

spare set Consist Of : 14, 15, 16

1шт.

14

ELEMENT Order : A77490

1шт.

15

J905113

CABLE

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
