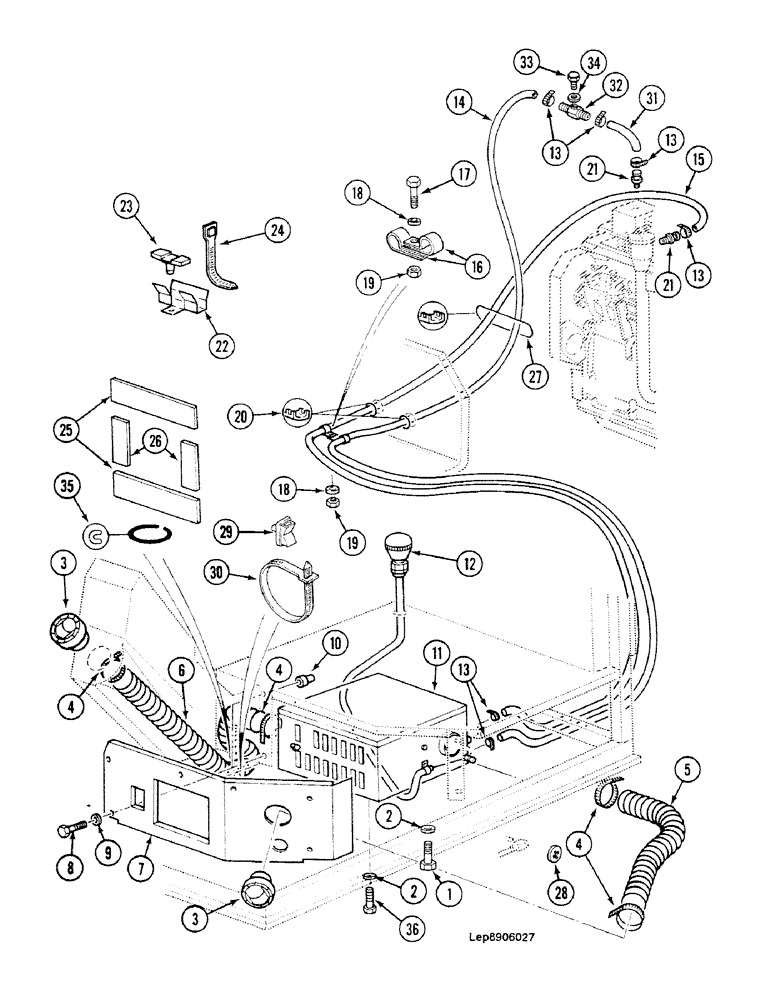

Запчасти Case 688C (9D-26) - CAB HEATING (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

2

B3528799

WASHER

"6.25 x 4 x 15"

4шт.

3

V3543238

DIFFUSER

2шт.

4

D136922

BLISTER

COLLAR 351mm

4шт.

5

N5931942

LOOM

HOSE

1шт.

6

D5931910

LOOM

HOSE

1шт.

7

Z3126320

HOOD

PLATE

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

9

V3528794

WASHER

"8.25 x 6 x 20"

6шт.

10

L234587

NUT

RIVET M8

6шт.

11

HEATING, See Figure : 4-32

6шт.

12

R4831326

CONTROL SLIDE

1шт.

13

F3036994

CLAMP

COLLAR 27

6шт.

14

C3636

HOSE, BULK

HOSE, METERS Order Length : 4000mm

1шт.

15

C3636

HOSE, BULK

HOSE, METERS Order Length : 3600mm

1шт.

16

R836985

CLAMP

COLLAR 27-31

3шт.

17

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

18

W3528795

WASHER

"10.25 x 7 x 25"

2шт.

19

G34598

SAFETY NUT

M10

1шт.

20

E1303161

GROMMET

GUIDE Order Length : 115mm

2шт.

21

U337520

FITTING

(-10766)::

2шт.

21

Z4837543

FITTING

(10767-)::

2шт.

22

Z2036902

CLASP

3-7

1шт.

22

A2036903

CLASP

8-13

1шт.

23

PP2036939

CLASP

1шт.

24

N51946

CLAMP

COLLAR 258mm

1шт.

25

B403145

GASKET

Order Length : 380mm

2шт.

26

B403145

GASKET

Order Length : 140mm

2шт.

27

B1303158

PROTECTOR

GUIDE Order Length : 155mm

1шт.

28

C936355

RING

1шт.

29

G3036926

BASE

SUPPORT

1шт.

30

D136922

BLISTER

COLLAR 351mm

1шт.

31

C3636

HOSE, BULK

HOSE, METERS Order Length : 250mm

1шт.

32

H1237246

FITTING

1шт.

33

L433813

SCREW

PLUG

1шт.

34

W5346094

SEAL,8mm ID x 13mm OD x 1mm Thk

SEALRING

1шт.

35

U303112

GASKET

Order Length : 300mm

2шт.
