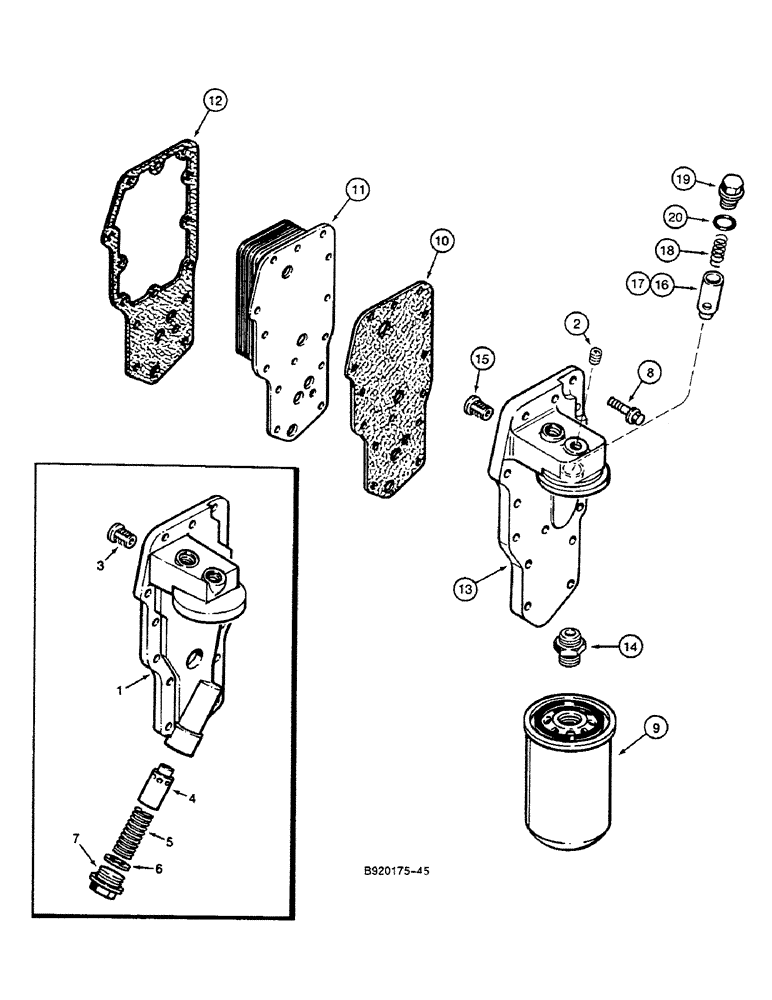

Запчасти Case 688C (2-36) - OIL FILTER AND COOLER (01) - ENGINE

1

J902295

HEAD ASSY.

SUPPORT, If Used

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

EF

1шт.

4

J909376

PLUNGER

1шт.

5

J903261

SPRING

Order : J918427 (1) / J918428 (1)

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

7

J904386

PLUG

1шт.

8

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

9

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

oil

1шт.

10

J918257

GASKET

Replace : J912532

1шт.

11

J918292

COOLER

Replace : J904320, Order : J921557 (1), (-21092869)::

1шт.

11

J921557

COOLER

(21092870-)::

1шт.

12

J918256

GASKET

1шт.

13

J918954

HEAD

SUPPORT Consists Of : 14, Replace : J915243 / J909352

1шт.

14

J909355

ADAPTER

1шт.

15

J902338

VALVE, PRESSURE RELI

EF

1шт.

16

J914084

VALVE

PLUNGER

1шт.

17

J918428

PLUNGER

1шт.

18

J918427

SPRING

1шт.

19

J915787

PLUG

1шт.

20

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
