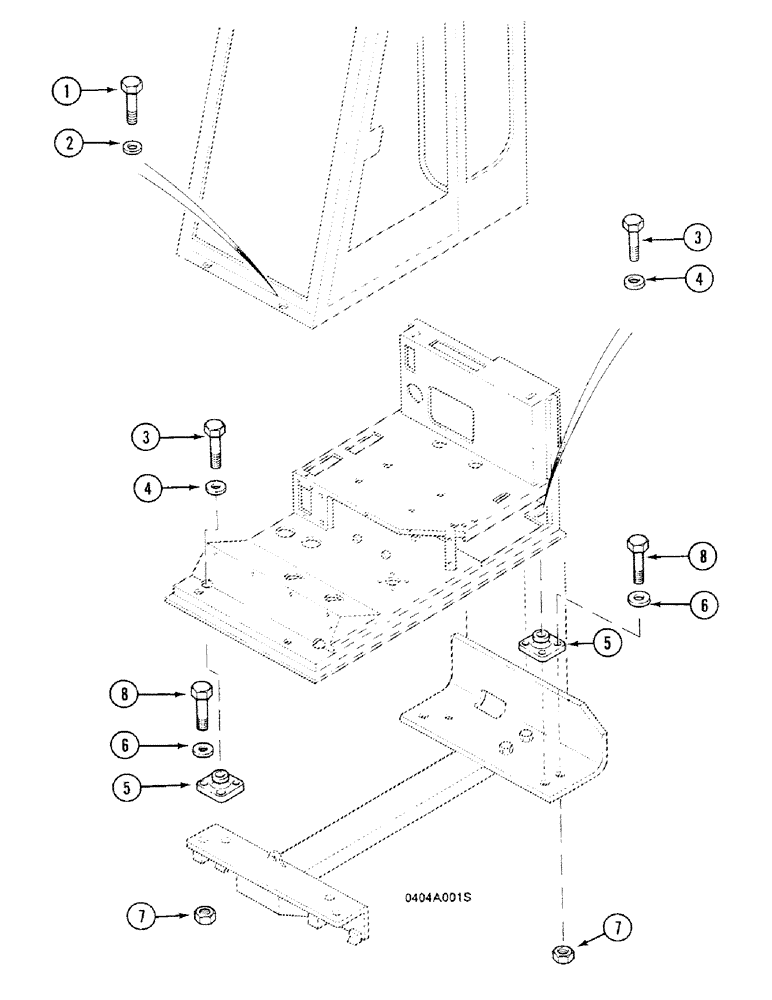

Запчасти Case 688C (9D-02) - CAB FLOOR AND CAB FIXATION (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

2

T3528792

WASHER

"14.5 x 10 x 35"

4шт.

3

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

4

U3528793

WASHER

"12.5 x 8 x 30"

4шт.

5

M4441449

SUPPORT

Replace : J3841491

4шт.

6

W3528795

WASHER

"10.25 x 7 x 25"

8шт.

7

G34598

SAFETY NUT

M10

8шт.

8

J1133839

SCREW

M10 x 45

8шт.
