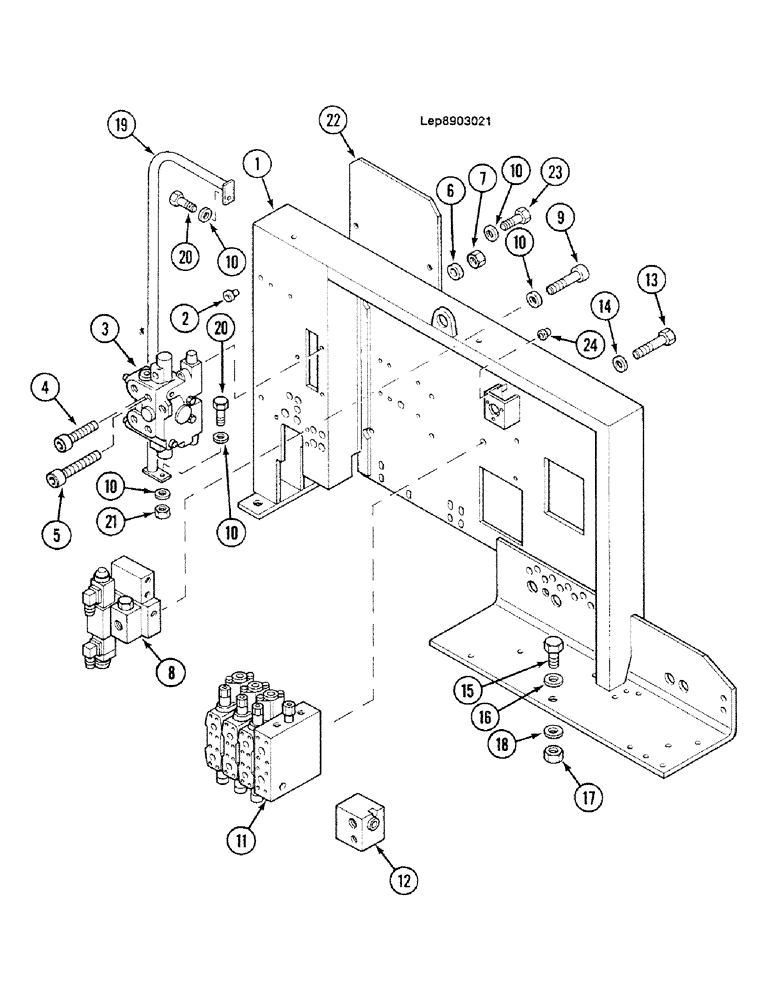

Запчасти Case 688C (9C-2) - VALVE BANK PARTITION, (-10629) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

L2154903

PARTITION

1шт.

2

L234587

NUT

M8

11шт.

3

BLOCK, See Figure : 8C-52

1шт.

4

Z1232960

SCREW

M8 x 75

1шт.

5

X1232959

SCREW

M8 x 50

2шт.

6

V3528794

WASHER

"8.25 x 6 x 20"

3шт.

7

A134596

SAFETY NUT

M8

3шт.

8

BLOCK, See Figure : 8C-38

1шт.

9

Q732909

BOLT,Hex, M8 x 25, 8.8

3шт.

10

V3528794

WASHER

"8.25 x 6 x 20"

10шт.

11

BLOCK, See Figure : 8C-26

1шт.

12

BRACKET, See Figure : 8C-34

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

14

U3528793

WASHER

"12.5 x 8 x 30"

3шт.

15

11125221

BOLT,Hex, M20 x 75, 8.8

6шт.

16

K4328747

WASHER

21 x 14 x 35

6шт.

17

Q134564

SAFETY NUT

M20

6шт.

18

H5428789

WASHER

21 x 7 x 35

6шт.

19

Q4247976

GRAB RAIL

1шт.

20

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

21

A134596

SAFETY NUT

M8

1шт.

22

V4623479

HOOD

PLATE

1шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

24

E834513

RIVET

M6

3шт.
