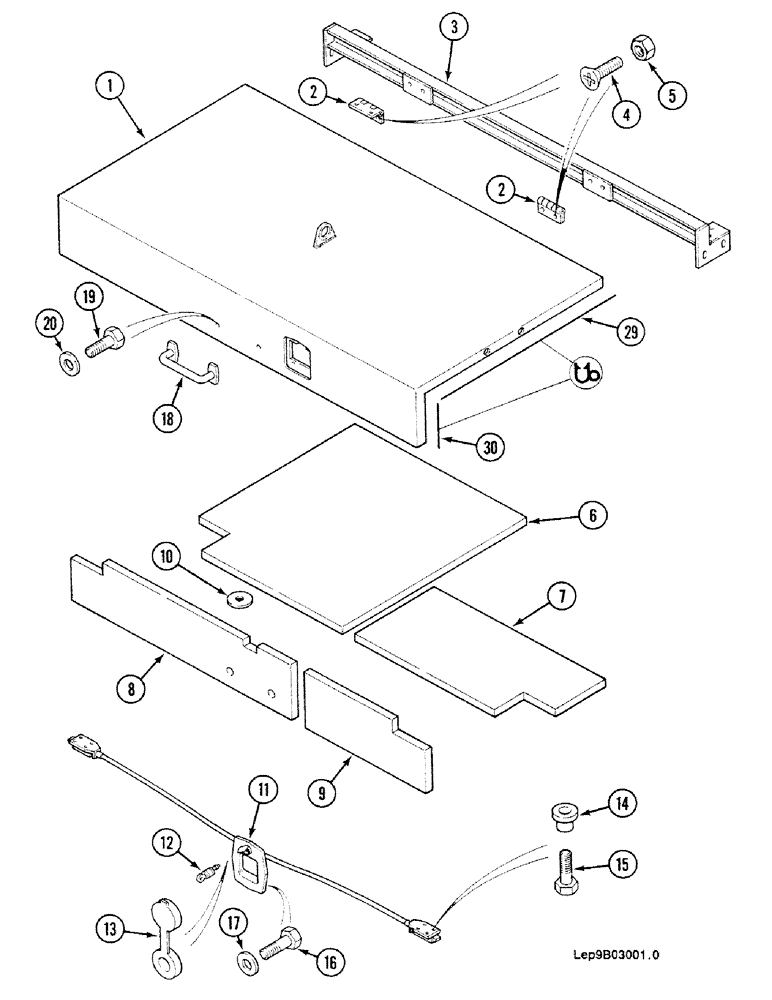

Запчасти Case 688C (9B-10) - ENGINE UPPER COVER, (11016-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

Z8643836

COWL

Consist Of : 2

1шт.

2

A736667

HINGE

2шт.

C3337440

PLUG

2шт.

3

S7828204

CROSSBAR

TRAVERSE

1шт.

4

N32465

HEX SOC SCREW,M10 x 25mm, Cl 10.9

4шт.

5

G34598

SAFETY NUT

M10 x 25

4шт.

6

R4441453

FOAM

INSULATION

1шт.

7

S4441454

FOAM

INSULATION

1шт.

8

T4441455

FOAM

INSULATION

1шт.

9

U4441456

FOAM

INSULATION

1шт.

10

K3036998

CLIP,ELECTRICAL

13шт.

11

L1352042

LOCK ASSY

Consist Of : 12, 13

1шт.

12

H152083

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

A1352009

SET OF 2 KEYS

1шт.

13

V2340499

DOOR COVER

1шт.

14

NLS

NO LONGER SERVICED

M5

8шт.

15

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

8шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

17

B3528799

WASHER

"6.25 x 4 x 15"

4шт.

18

K1352041

HANDLE

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

20

V3528794

WASHER

"8.25 x 6 x 20"

2шт.

21

X1303155

PROFILE

SEAL Order Length : 641mm

1шт.

22

X1303155

PROFILE

SEAL Order Length : 135mm

2шт.
