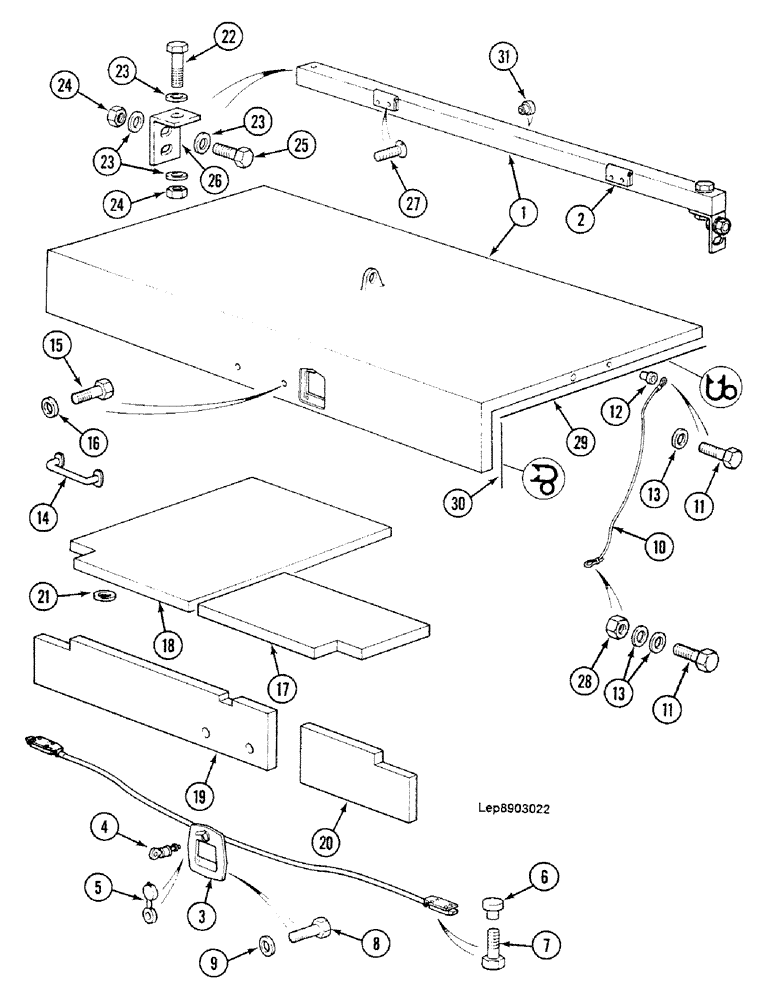

Запчасти Case 688C (9B-08) - ENGINE UPPER COVER, (-11015) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

F8143845

ENGINE HOOD

Consist Of : 2

1шт.

2

A736667

HINGE

2шт.

C3337440

PLUG

2шт.

3

L1352042

LOCK ASSY

Consist Of : 4, 5

1шт.

4

H152083

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

A1352009

SET OF 2 KEYS

1шт.

5

V2340499

DOOR COVER

1шт.

6

NLS

NO LONGER SERVICED

M5

8шт.

7

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

8шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

9

B3528799

WASHER

"6.25 x 4 x 15"

4шт.

10

B2531358

CABLE

1шт.

11

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

12

C35422

RIVET

M8

1шт.

13

V3528794

WASHER

"8.25 x 6 x 20"

1шт.

14

K1352041

HANDLE

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

V3528794

WASHER

"8.25 x 6 x 20"

2шт.

17

S4441454

FOAM

INSULATION Replace : P4241443

1шт.

18

R4441453

FOAM

INSULATION Replace : N4241442

1шт.

19

T4441455

FOAM

INSULATION Replace : V4241449

1шт.

20

U4441456

FOAM

INSULATION Replace : W4241450

1шт.

21

K3036998

CLIP,ELECTRICAL

14шт.

22

S933816

SCREW

M10 x 95

2шт.

23

W3528795

WASHER

"10.25 x 7 x 25"

12шт.

24

G34598

SAFETY NUT

M10

6шт.

25

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

26

W1831625

ANGLE

SUPPORT

2шт.

27

N32465

HEX SOC SCREW,M10 x 25mm, Cl 10.9

2шт.

28

A134596

SAFETY NUT

M10

2шт.

29

X1303155

PROFILE

SEAL Order Length : 645mm

1шт.

30

X1303155

PROFILE

SEAL Order Length : 135mm

2шт.

31

J35474

RIVET

3шт.
