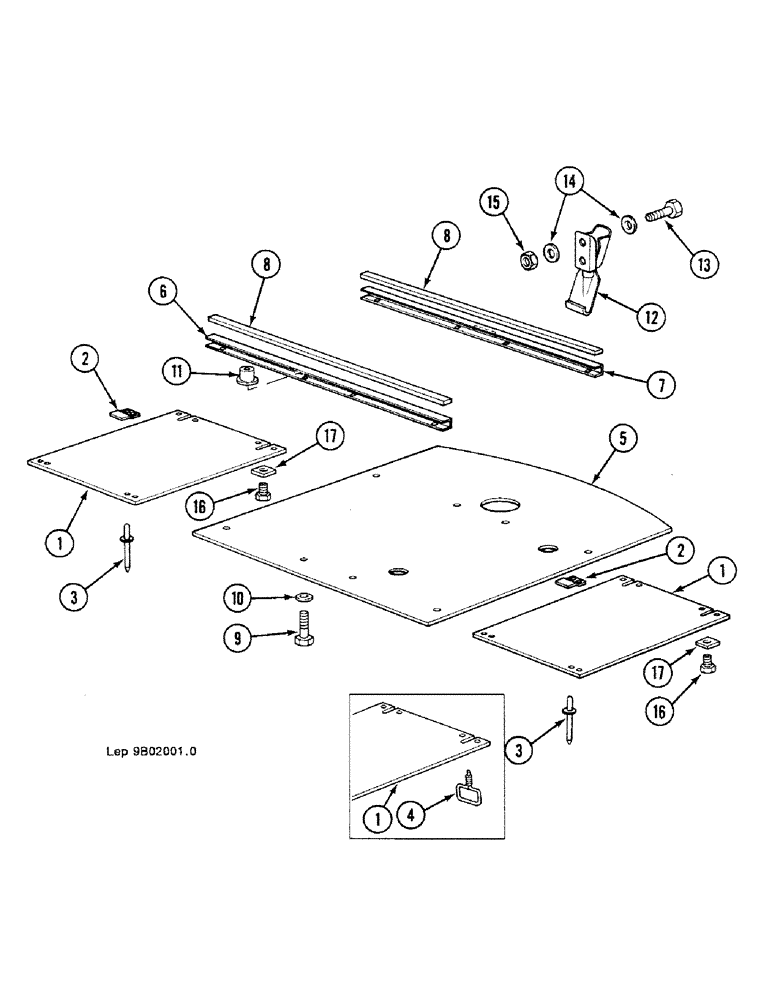

Запчасти Case 688C (9B-06) - ENGINE MODULE LOWER LOCK (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

A7043888

PANEL

Consist Of : 2, 3, (-10960)

2шт.

1

C8643839

PANEL

Consist Of : 2, 3, (10961-)

2шт.

2

T2826165

CLIP,ELECTRICAL

4шт.

3

D35446

RIVET

8шт.

4

L852091

HANDLE

(-10960)::

4шт.

P7043832

PANEL

PLATE Consist Of : 5-11

1шт.

5

PLATE Order : P7043832

1шт.

6

V2125771

BRACKET

U-PIECE

1шт.

7

U2125770

BRACKET

U-PIECE

1шт.

8

Z3127

GASKET

Order Length : 995mm

2шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

10

Q35020

WASHER

L8

8шт.

11

L234587

NUT

M8

8шт.

12

N3036932

HOOK

LOCK

1шт.

13

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

2шт.

14

D4328718

WASHER

"5.25 x 3.5 x 12"

2шт.

15

V834574

SAFETY NUT

M5

2шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

(10961-)::

4шт.

17

U1523469

PLATE

(10961-)::

4шт.
