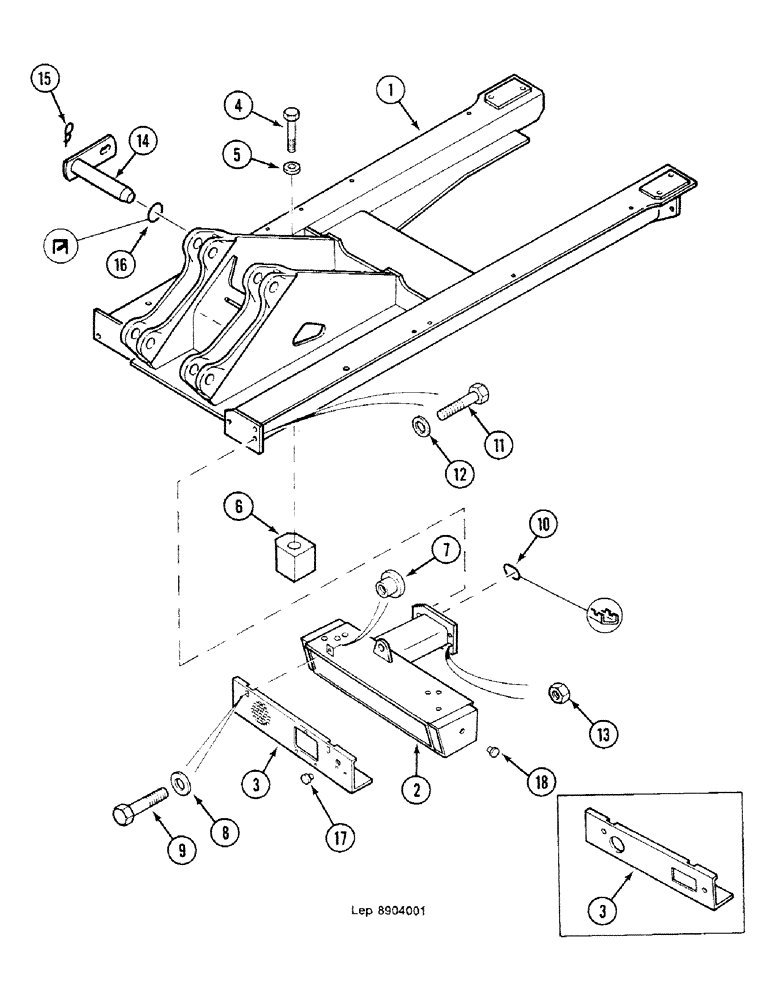

Запчасти Case 688C (9A-4) - TURNTABLE FRAME (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

B1054965

FRAME

1шт.

2

U7128270

BEAM

MEMBER

1шт.

3

M7128240

HOOD

PLATE (-11002)::

1шт.

3

B7828212

SUPPORT

PLATE (11003-)::

1шт.

4

11125221

BOLT,Hex, M20 x 75, 8.8

(-10856)::

1шт.

4

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

(10857-)::

1шт.

5

K4328747

WASHER

21 x 14 x 35

1шт.

6

G729796

LARGE PIN

PIN, LARGE (-10856)::

1шт.

6

K5120361

LARGE PIN

PIN, LARGE (10857-)::

1шт.

7

Z35419

RIVET

M10

4шт.

8

W3528795

WASHER

"10.25 x 7 x 25"

4шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

10

E1303161

GROMMET

SEAL Order Length : 125mm

1шт.

11

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

3шт.

12

K4328747

WASHER

21 x 14 x 35

6шт.

13

Q134564

SAFETY NUT

M20

3шт.

14

U50388

PIN

Dia 60

4шт.

15

C36020

SPLIT PIN/SAFETY PIN

4шт.

16

R0151309

SEAL

8шт.

17

R3037441

PLASTIC PLUG

1шт.

18

W3237454

PLASTIC PLUG

1шт.
