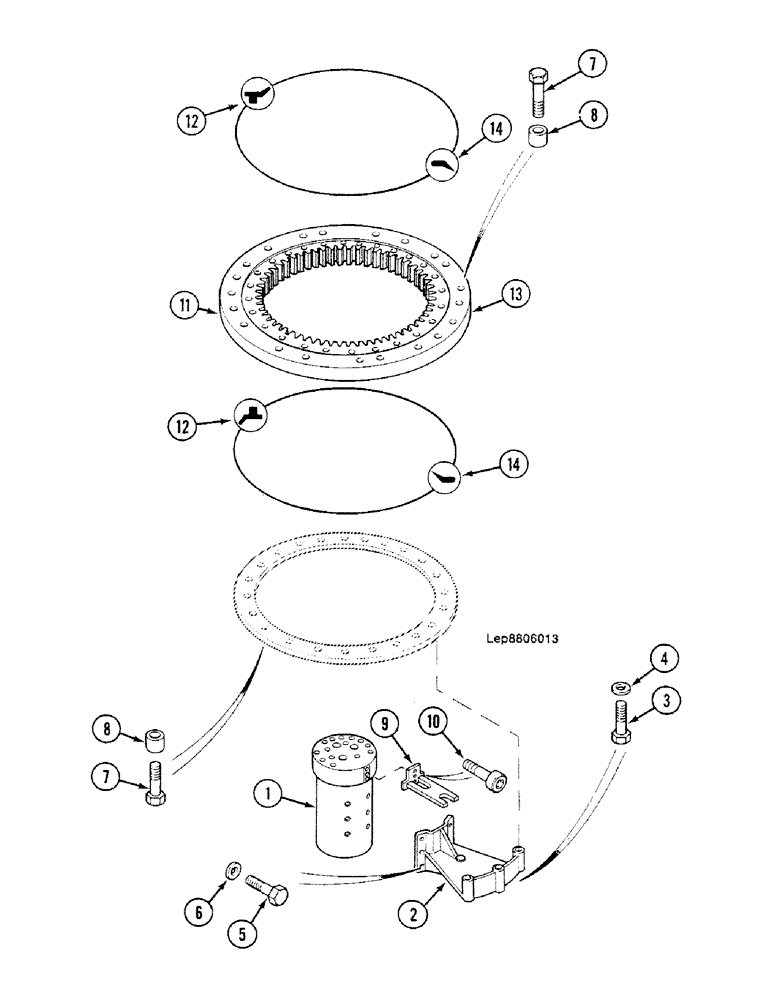

Запчасти Case 688C (9A-2) - SWING MOTION COMPONENTS (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

JOINT swing, See Figure : 8C-24

1шт.

2

N2346173

SUPPORT

1шт.

3

X1633872

SCREW

M20 x 150 10.9

3шт.

4

H5428789

WASHER

21 x 7 x 35, Replace : F4628732

3шт.

5

V933819

BOLT,Hex, M12 x 55, 8.8, Full Thd

6шт.

6

S4328731

WASHER

"12.5 x 24 x 30"

6шт.

7

87015557

BOLT,Hex, M20 x 100mm, Cl 10.9

43шт.

8

U4528718

SHIM

21 x 40 x 35

43шт.

9

E7428222

STOP LOCK

1шт.

10

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

3шт.

11

N2239913

SLEWING RING

Consist Of : 12, Replace : E739983

1шт.

12

M8046009

GASKET

2шт.

13

N2239913

SLEWING RING

Consist Of : 14, Replace : E739983

1шт.

14

X9346071

SEAL

2шт.
