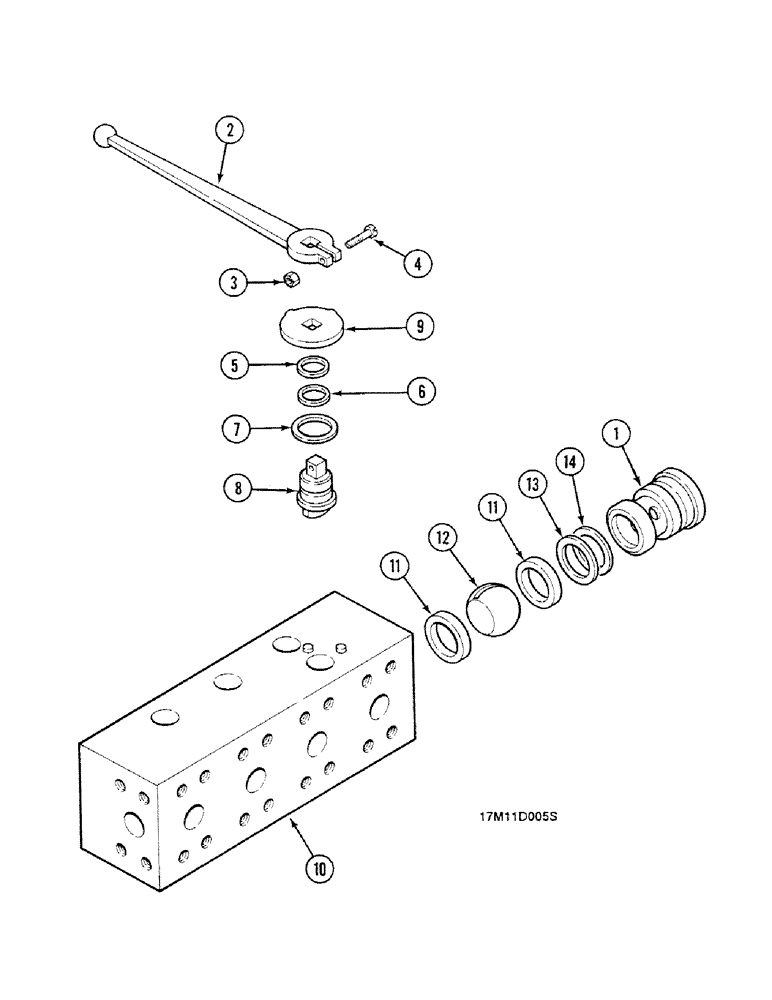

Запчасти Case 688C (8G-146) - SELECTION SHUTOFF (07) - HYDRAULIC SYSTEM

V837863

COCK

SHUTOFF Consist Of : 1-14

1шт.

1

SLEEVE Order : V837863

1шт.

2

M1352020

LEVER ASSY & KNOB

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

Q32444

SCREW

1шт.

5

V1245262

BACK-UP RING

JOINT

1шт.

6

C2930409

O-RING,2.5mm Thk x 15mm ID, 80 Duro

"15 x 2.5"

1шт.

7

W1245263

WASHER

1шт.

8

A6027840

PLATE,SMALL SQUARE

1шт.

9

X1946304

WASHER

1шт.

10

BLOCK Order : V837863

1шт.

11

L8846040

BUSHING

2шт.

12

C1329954

BALL KNOB

1шт.

13

B2930408

O-RING

"32 x 2.5"

1шт.

14

U1245261

BACK-UP RING

JOINT

1шт.
