(8G-136) - LOAD HOLDING VALVE (DIPPERSTICK CYLINDER)

Запчасти Case 688C (8G-136) - LOAD HOLDING VALVE (DIPPERSTICK CYLINDER) (07) - HYDRAULIC SYSTEM

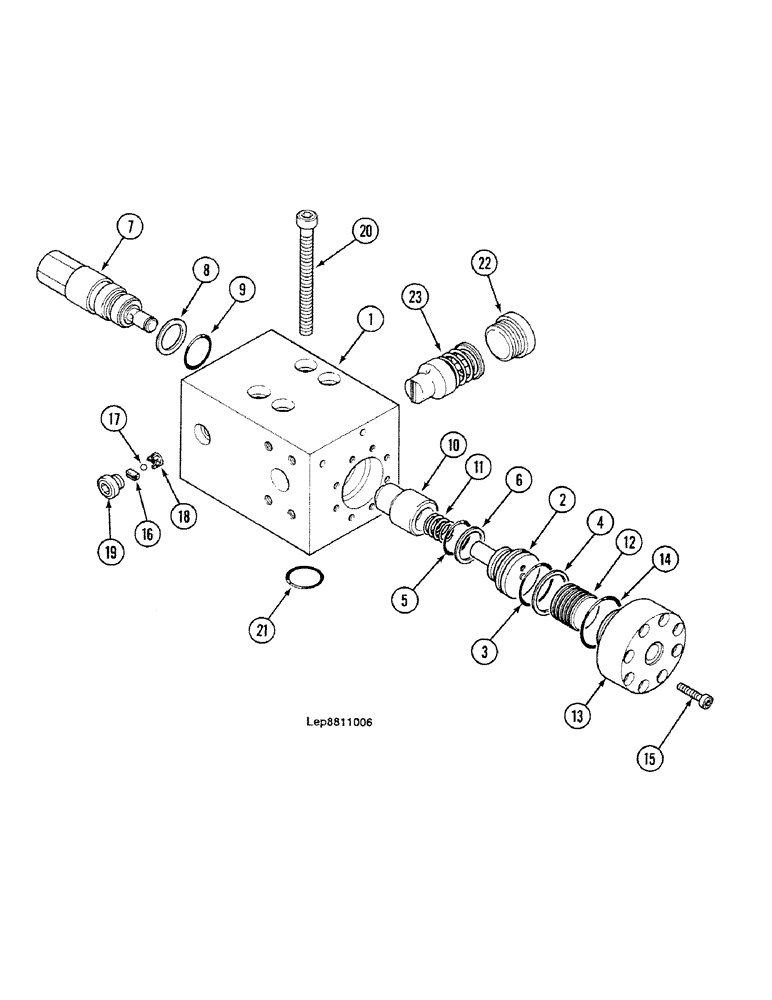

Схема запчастей Case 688C - (8G-136) - LOAD HOLDING VALVE (DIPPERSTICK CYLINDER) (07) - HYDRAULIC SYSTEM
23
20
3
6
22
17
11
15
13
16
12
1
21
4
14
9
2
5
19
8
10
7
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K4343398

SHIN

BLOCK Consist Of : 1-23

1шт.

1

BODY Order : K4343398

1шт.

J8346271

SPOOL

SLEEVE Consist Of : 2-6

1шт.

2

SLEEVE Order : J8346271

1шт.

3

Z30405

O-RING

"2.62 x 32.99-80"

1шт.

4

Q945222

BACK-UP RING

JOINT

1шт.

5

N1230443

O-RING,23.47MM ID x 2.62MM OD

"2.62 x 23.47-80"

1шт.

6

A1746045

BACK-UP RING

JOINT

1шт.

S4043393

PRESSURE LIMITER

Consist Of : 7, 8, 9

1шт.

7

LIMITER Order : S4043393

1шт.

8

N1245232

RING

BUSHING

1шт.

9

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

1шт.

10

Z1729852

VALVE POPPET

1шт.

11

R1538186

SPRING

compression

1шт.

12

N6027898

PISTON

1шт.

13

S150252

CAP

1шт.

14

N30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"2.62 x 37.77-80"

1шт.

15

T1032901

SCREW

M5 x 25 x 25 10.9

8шт.

16

Z4229101

STOP

1шт.

17

W31001

BALL

1шт.

18

A4229102

SEAT

1шт.

19

V2537448

PLUG

1шт.

S2230441

GASKET

"8.4 x 11.9 x 1"

1шт.

20

N732976

SCREW

M10 x 100 10.9

4шт.

21

L1130483

O-RING

"3.53 x 24.99-80"

1шт.

22

A2537429

PLUG

1шт.

V5746063

GASKET

"23.9 x 29.2 x 1.5"

1шт.

23

X4343387

LIMITER, TRAVEL

LIMITER

1шт.
