(8G-112) - LOAD HOLDING VALVE (BOOM CYLINDER)

Запчасти Case 688C (8G-112) - LOAD HOLDING VALVE (BOOM CYLINDER) (07) - HYDRAULIC SYSTEM

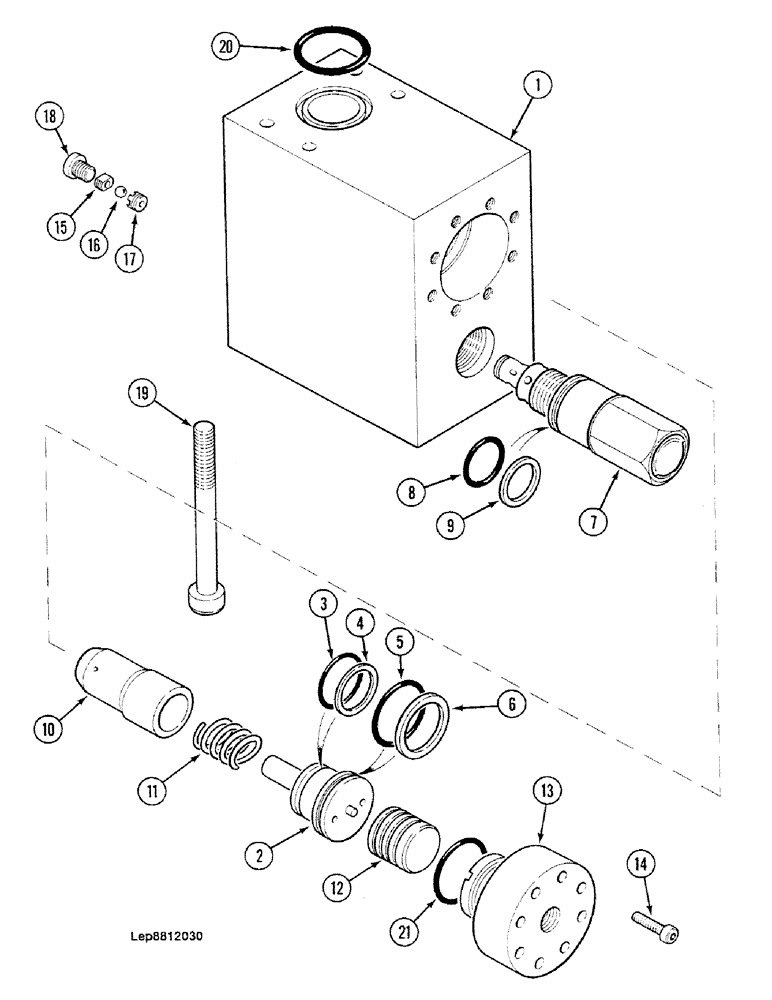

Схема запчастей Case 688C - (8G-112) - LOAD HOLDING VALVE (BOOM CYLINDER) (07) - HYDRAULIC SYSTEM
2
1
4
17
3
21
6
8
10
12
14
20
9
11
18
19
13
16
7
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S4343313

SHIN

BLOCK Consist Of : 1-21

1шт.

1

BODY Order : S4343313

1шт.

J8346271

SPOOL

SLEEVE Consist Of : 2-6

1шт.

2

SLEEVE Order : J8346271

1шт.

3

N1230443

O-RING,23.47MM ID x 2.62MM OD

"2.62 x 23.47-80"

1шт.

4

A1746045

BACK-UP RING

JOINT

1шт.

5

Z30405

O-RING

"2.62 x 32.99-80"

1шт.

6

Q945222

BACK-UP RING

JOINT

1шт.

S4043393

PRESSURE LIMITER

Consist Of : 7, 8, 9

1шт.

7

LIMITER Order : S4043393

1шт.

8

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

1шт.

9

N1245232

RING

BUSHING

1шт.

10

Z1729852

VALVE POPPET

1шт.

11

R1538186

SPRING

compression

1шт.

12

N6027898

PISTON

1шт.

13

S150252

CAP

1шт.

14

T1032901

SCREW

M5 x 25 x 25

8шт.

15

Z4229101

STOP

1шт.

16

W31001

BALL

1шт.

17

A4229102

SEAT

1шт.

18

V2537448

PLUG

1шт.

S2230441

GASKET

"8.4 x 11.9 x 1"

1шт.

19

T1032924

SCREW

M10 x 110

4шт.

20

L1130483

O-RING

"3.53 x 24.99-80"

1шт.

21

N30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"2.62 x 37.77-80"

1шт.
