(8G-110) - EARTHMOUING, HANDLING, TRENCHING, BORING, BEET GRAB CYLINDER IDENTIFICATION LETTER : M-

Запчасти Case 688C (8G-110) - EARTHMOUING, HANDLING, TRENCHING, BORING, BEET GRAB CYLINDER IDENTIFICATION LETTER : M- (07) - HYDRAULIC SYSTEM

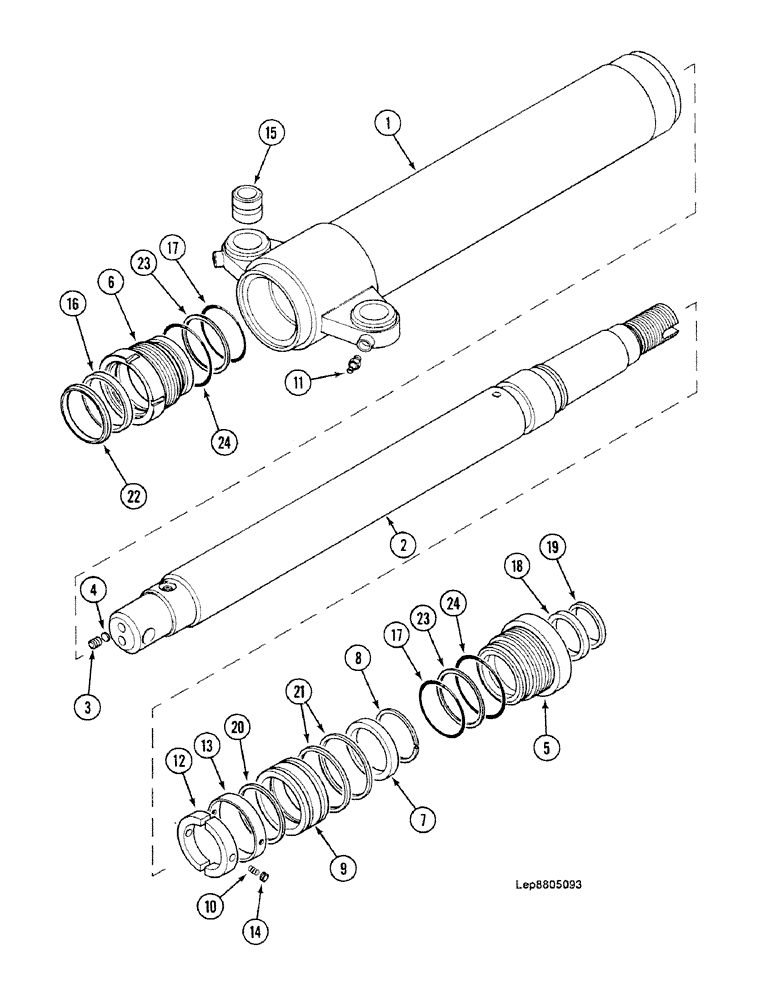

Схема запчастей Case 688C - (8G-110) - EARTHMOUING, HANDLING, TRENCHING, BORING, BEET GRAB CYLINDER IDENTIFICATION LETTER : M- (07) - HYDRAULIC SYSTEM
12
10
11
24
15
24
1
17
17
14
4
20
23
23
8
16
21
5
7
19
22
6
2
13
3
9
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D46785

CYLINDER ASSY.

Consist Of : 1-24

1шт.

1

M752479

HYD CYL SLEEVE

PIPE

1шт.

2

R149423

STEM

Consist Of : 3, 4

1шт.

3

T237492

PLUG

2шт.

4

X1145007

HOLE PLUG BUTTON

2шт.

5

A3729105

CYLINDER END CAP

BEARING

1шт.

6

Z3729104

CYLINDER END CAP

BEARING

1шт.

7

R228980

WASHER

1шт.

8

L836911

SPECIAL RING

spring

1шт.

9

E2328961

BRONZE BUSHING

BRONZE BUSH

1шт.

10

U38129

COMPRESSION SPRING

2шт.

11

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

12

G28733

BUSHING

1шт.

13

F28732

RING

1шт.

14

E29007

SMALL PIN

2шт.

15

U28860

BUSHING

2шт.

D4949603

KIT

seals Consist Of : 16-24

1шт.

16

P1146057

SEAL

1шт.

17

L30347

O-RING

"5.33 x 97.79-80"

2шт.

18

B4346081

SEAL

1шт.

19

N2046046

SEAL,75mm ID x 85mm OD x 10mm Thk

1шт.

20

X446060

SPECIAL MAT. SEAL

1шт.

21

K446048

SPECIAL MAT. SEAL

2шт.

22

V2046007

WIPER SEAL

1шт.

23

W1846069

BACK-UP RING

JOINT

2шт.

24

T730451

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

"2.62 x 113.97-80"

2шт.
