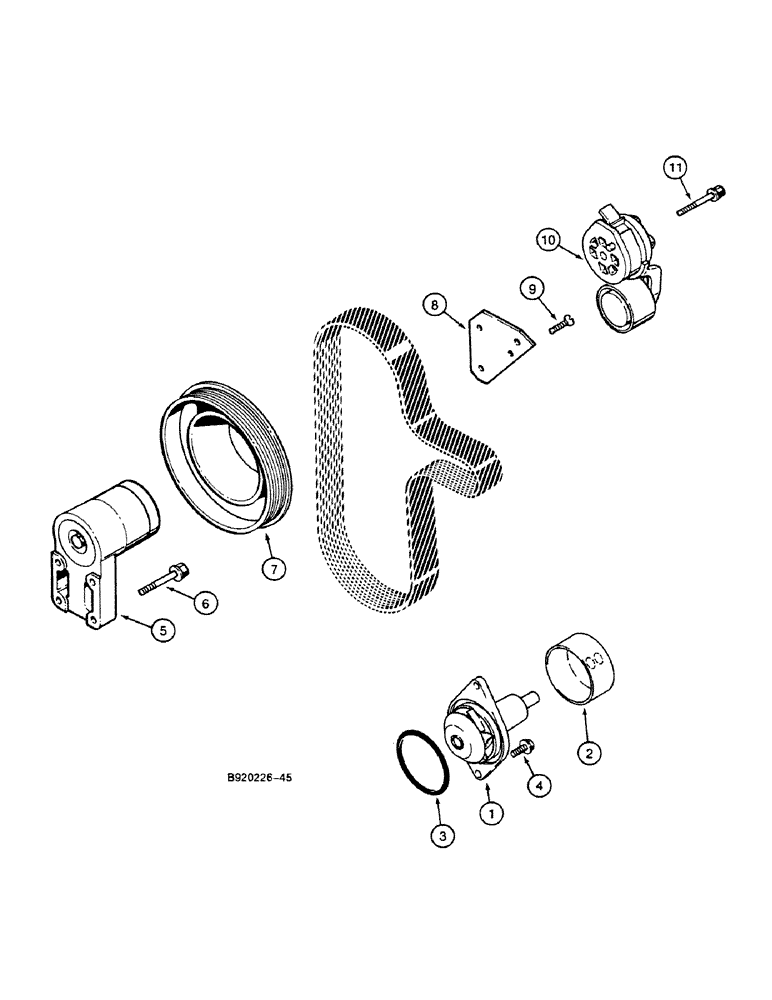

Запчасти Case 688C (2-26) - WATER PUMP SYSTEM (01) - ENGINE

A77703

PUMP, WATER

Consist Of : 1-3, Replace : A77471

1шт.

A77703GV

WATER PUMP

Value, water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

688C S/N 10501 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

PUMP Order : A77703

1шт.

2

PULLEY Order : A77703

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

1шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

7

PULLEY, See Figure : 2-12

1шт.

8

J918183

BRACKET

Replace : J911744

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

10

J918944

BELT TENSIONER

Replace : J914086

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.
